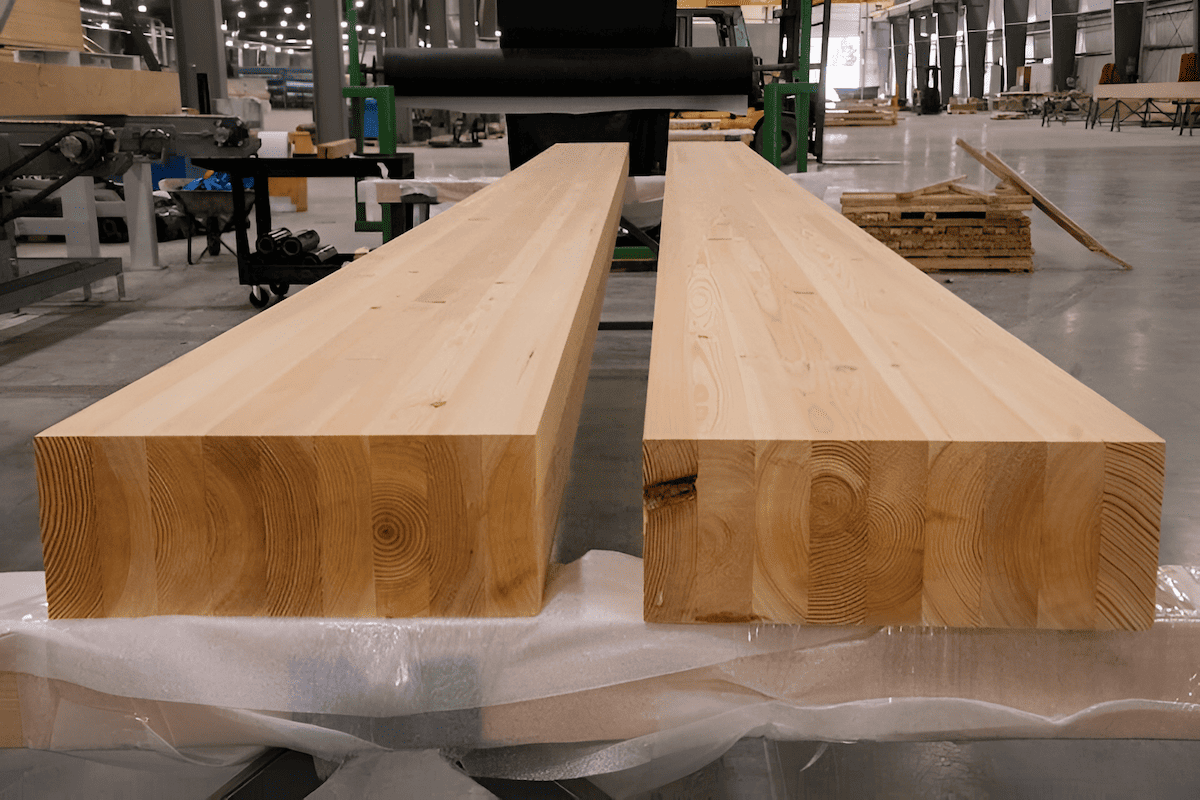

What Are Gluelams and Why They Matter

Gluelams, short for glued laminated timber (often written “glulam”), are engineered wood beams that combine the warmth of natural timber with the strength and reliability of modern structural materials. Instead of relying on a single, solid piece of lumber, a gluelam is produced by bonding multiple layers of dimensional lumber together with high-performance structural adhesive under pressure.

The result is a strong, stable, and surprisingly lightweight structural member that can outperform many traditional solid wood beams. Modern building codes recognize gluelams for use in homes, public buildings, churches, sports arenas, and commercial roofs where long, open spans and attractive exposed wood are desired.

As interest grows in mass timber construction and low-carbon building materials, gluelams play a central role. They use fast-growing softwoods efficiently, lock away carbon in long-lived structures, and offer architects the freedom to design dramatic curved, tapered, and vaulted roof forms that would be difficult or impossible with steel or concrete alone.

What Gluelams Are Made Of

Gluelams are typically manufactured from carefully graded softwood species such as spruce, pine, or Douglas fir. The individual pieces of lumber, called laminations, are kiln-dried, visually or machine-graded for strength, and trimmed to remove significant defects before they are assembled into a beam.

These laminations are stacked so that their grain runs parallel along the length of the member, then bonded with a waterproof structural adhesive—commonly phenol-resorcinol formaldehyde (PRF) or similar exterior-grade glues. The adhesive is applied to the wide faces of the laminations, the layup is clamped or pressed, and the beam is cured under controlled temperature and pressure.

Because each lamination can be placed where it performs best, gluelams are often “engineered for strength”. Higher-grade lumber is placed in the outer tension and compression zones, where stresses are greatest, while more economical laminations are used in the core. This selective lay-up produces a beam that is both resource-efficient and structurally optimized.

The manufacturing process also allows the factory to:

• Disperse or bypass natural defects such as knots, checks, and wane.
• Produce very large cross-sections and long lengths by finger-jointing laminations.
• Create curved or cambered beams that follow an architectural roofline or arch.

Compared with traditional solid wood or nail-laminated beams, gluelams are more predictable. Their properties are tested, documented, and standardized, making them easier to design with under modern structural codes.

Advantages of Gluelams over Laminated Wood Beams

Gluelams offer several key advantages over ordinary sawn members and simple nail-laminated assemblies:

1. Superior strength-to-weight ratio. Because the laminations are graded and oriented intentionally, gluelams can carry very high loads for their weight. Long-span roof beams, ridge beams, and floor girders can often be slimmer and lighter than equivalent steel or concrete solutions, yet still meet all safety factors.

2. Dimensional stability. Solid timbers can check, twist, and cup as they dry. In a gluelam, thin laminations are already kiln-dried and glued with opposing growth rings, reducing the tendency to warp. Gluelams maintain their shape and size over time, which helps keep walls straight, doors and windows operating smoothly, and roof lines looking crisp.

3. Design flexibility. Unlike standard sawn beams, gluelams can be ordered in straight, curved, tapered, or pitched shapes. This freedom lets engineers and architects create dramatic vaulted ceilings, exposed trusses, and sweeping entry canopies without resorting to heavy steel trusses.

4. Efficient use of wood fiber. Because laminations can be produced from narrower boards, gluelam production makes good use of smaller-diameter logs from sustainably managed forests. That means fewer large old-growth trees are needed to achieve the same structural performance.

5. Fire and durability performance. Massive wood members char slowly in a fire, forming a protective insulating layer. Properly designed gluelams can maintain load-bearing capacity longer than unprotected steel, which can lose strength rapidly at high temperatures. Exterior-grade adhesives and factory finishes also provide excellent durability when beams are detailed to shed water.

Compared to other engineered wood products like LVL (laminated veneer lumber) and CLT (cross-laminated timber), gluelams excel where long, linear spans and exposed appearance are important, while still integrating well with those systems in mass timber projects.

Applications of Gluelams in Construction

Gluelams are used wherever designers need a combination of strength, span, and exposed wood appearance. Typical applications include:

• Roof beams and trusses in churches, schools, gymnasiums, and community centers where open, column-free interiors are desired.
• Floor girders and rim beams in custom homes, cabins, and timber frame buildings that need long spans over open living spaces or garages.
• Door and window headers over wide openings such as multi-panel patio doors, storefront glazing, and overhead garage doors where conventional dimensional lumber would be undersized or prone to sagging.
• Timber bridges and covered walkways, especially where weather-resistant, renewable structural members are preferred over steel.
• Architectural arches and curved canopies that accent entryways or outdoor gathering spaces.

In residential construction, gluelams are often used for ridge beams, floor beams, and garage door headers, allowing open-concept layouts and vaulted ceilings. In commercial and institutional buildings, they are a core component of modern mass timber systems, pairing with CLT floor panels and timber columns to create warm, biophilic interiors that showcase wood instead of hiding it.
