What Are Wood Water Wheels and How Do They Work?

Wondering how wood water wheels work and why they are still relevant today? Wood water wheels are mechanical systems that convert the energy of flowing water into rotational power used to drive mills, machinery, and even modern micro-hydro systems.

💧 Quick answer: Water wheels use flowing or falling water to turn a wheel, converting natural energy into mechanical motion that can power grinding, lifting, or electricity generation.

They were the original renewable energy machines — powering communities long before electricity grids.

• Renewable energy: uses continuous water flow instead of fuel.
• Mechanical power: drives mills, pumps, and tools.
• Modern revival: used in small-scale micro-hydro systems.

For centuries, wood water wheels were central to daily life, powering mills, workshops, and early industries across Europe and the New World. These systems connected communities directly to their local environment, relying on rivers and streams as a steady source of energy.

Today, many historic wheels are being restored or reimagined as part of sustainable energy systems. Their simple but effective design continues to inspire modern micro-hydro solutions.

MILLS • AGRICULTURE • INDUSTRIAL HISTORY

Traditional Uses for Wood Water Wheels

Wondering what wood water wheels were used for historically? These systems powered a wide range of essential activities, forming the backbone of early agricultural and industrial communities.

🌾 Quick answer: Water wheels were used for grinding grain, sawing timber, pumping water, and powering workshops.

They transformed manual labor into scalable production.

• Flour mills: turned grain into flour using heavy millstones.
• Sawmills: powered cutting of logs into boards.
• Pumping systems: moved water for irrigation and mining.
• Workshops: drove tools for metalworking, textiles, and more.

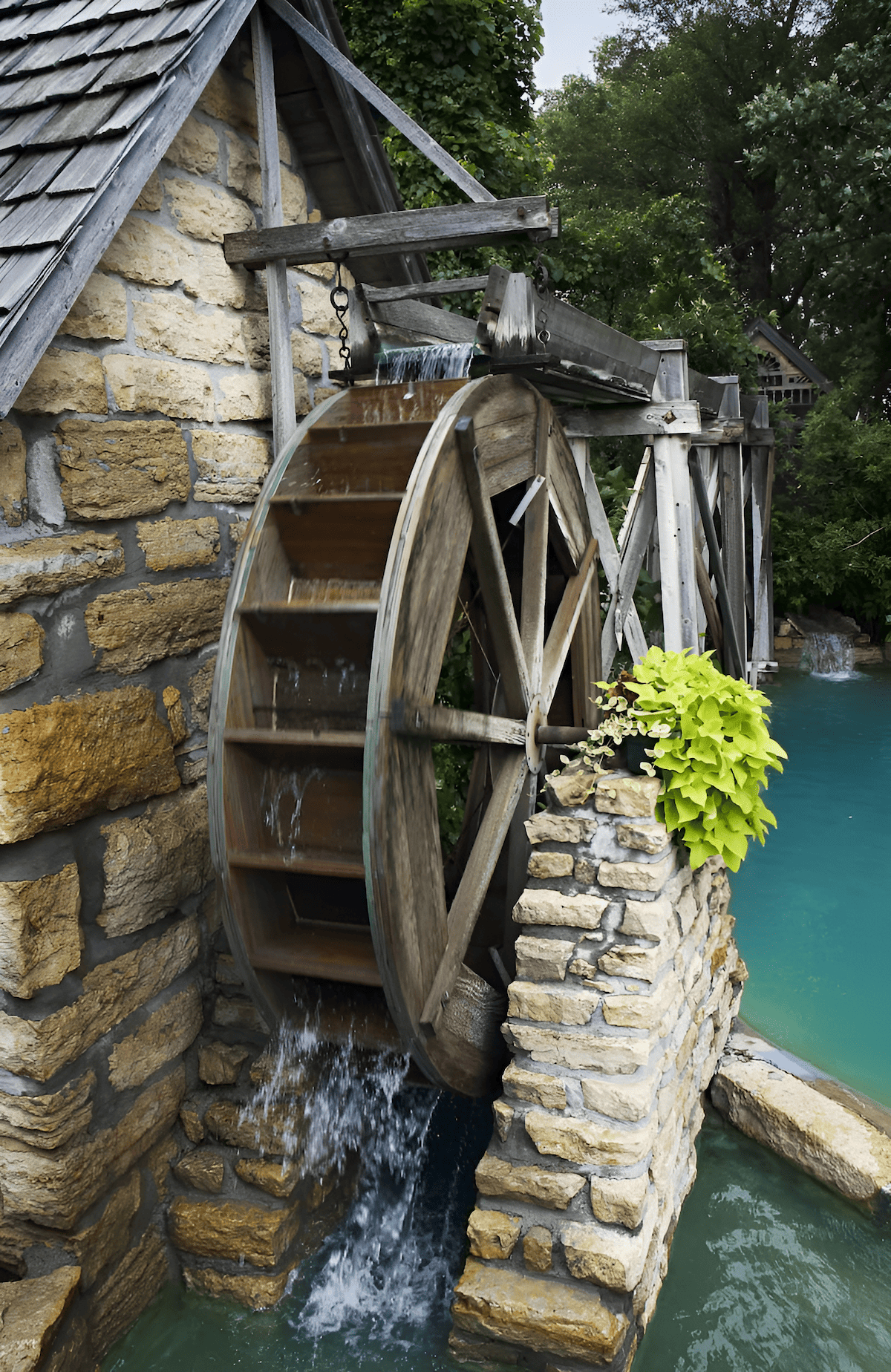

One of the most important uses was in flour mills, where water wheels powered large grinding stones. This allowed communities to produce food at a scale far beyond manual methods, supporting population growth and economic development.

Beyond agriculture, water wheels also powered early manufacturing, helping bridge the gap between handcraft production and the mechanized systems of the industrial revolution.

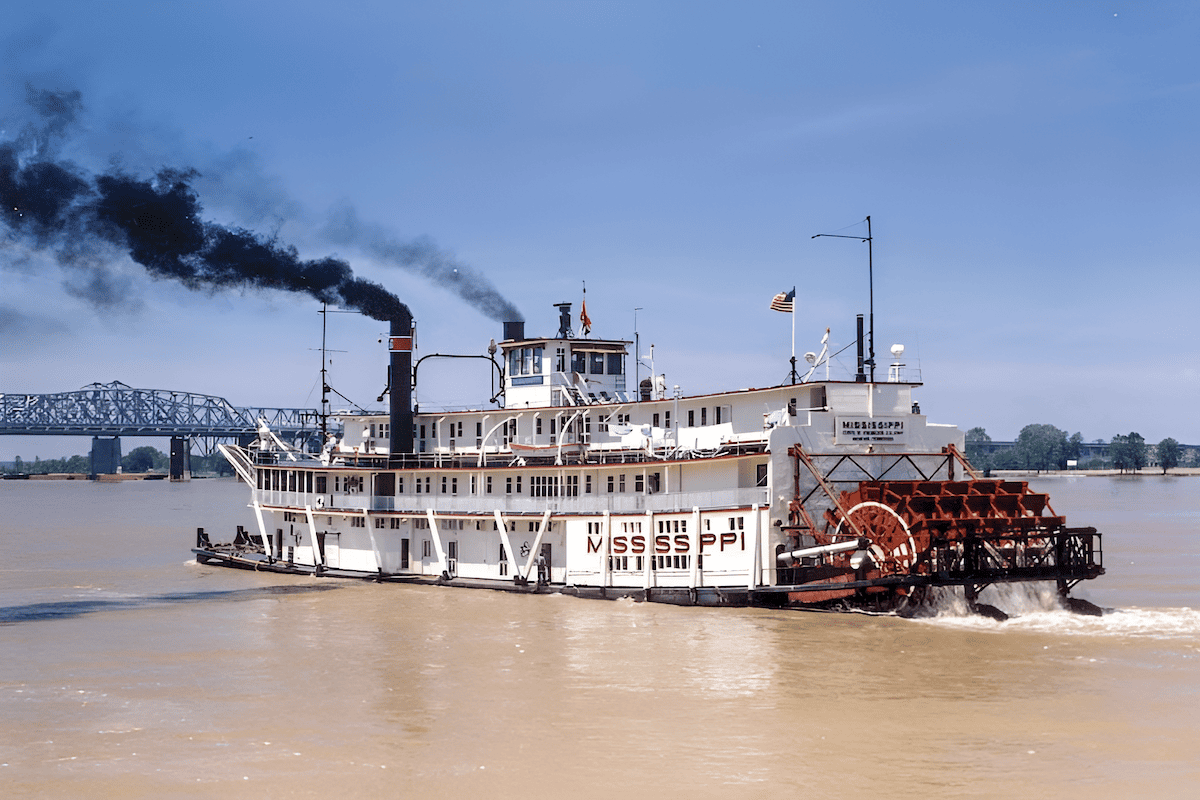

Another important application for wood water wheels was transportation. Riverboat paddle wheels, mounted on the sides or stern of shallow-draft boats, converted steam power into thrust and steering. While the energy source was steam rather than the river current, the basic paddle-wheel design grew out of generations of water-wheel experience.

This method of propulsion was revolutionary. It allowed efficient transportation of goods and people along shallow rivers—a system of “flat-bottom navigation” that opened up inland trade routes. By facilitating the movement of commodities and passengers over long distances, paddle-wheel riverboats transformed commerce and regional development, connecting remote farming communities to expanding cities and ports.

Famous Wood Water Wheels from Around the World

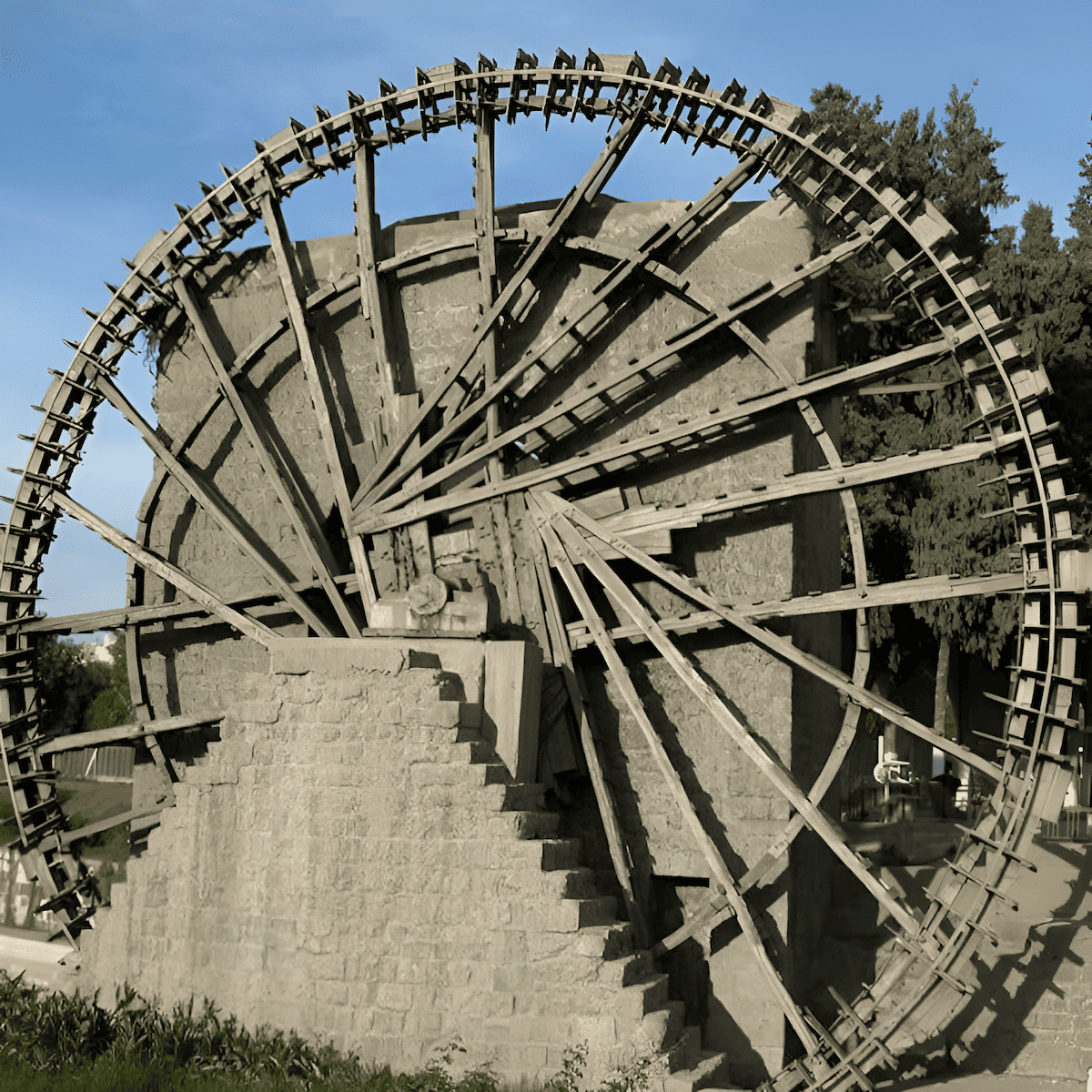

Across the globe, large wood and wood-framed water wheels have served as landmarks as well as workhorses. One of the most iconic examples is the set of Hama water wheels in Syria. Known locally as norias, these ancient structures lifted water from the Orontes River for irrigation, supporting agriculture in an otherwise dry region.

Their large diameter, distinctive creaking sound, and continuous motion made them a centerpiece of Hama’s identity. Today, they stand as powerful symbols of both traditional irrigation engineering and the importance of surface water in arid landscapes.

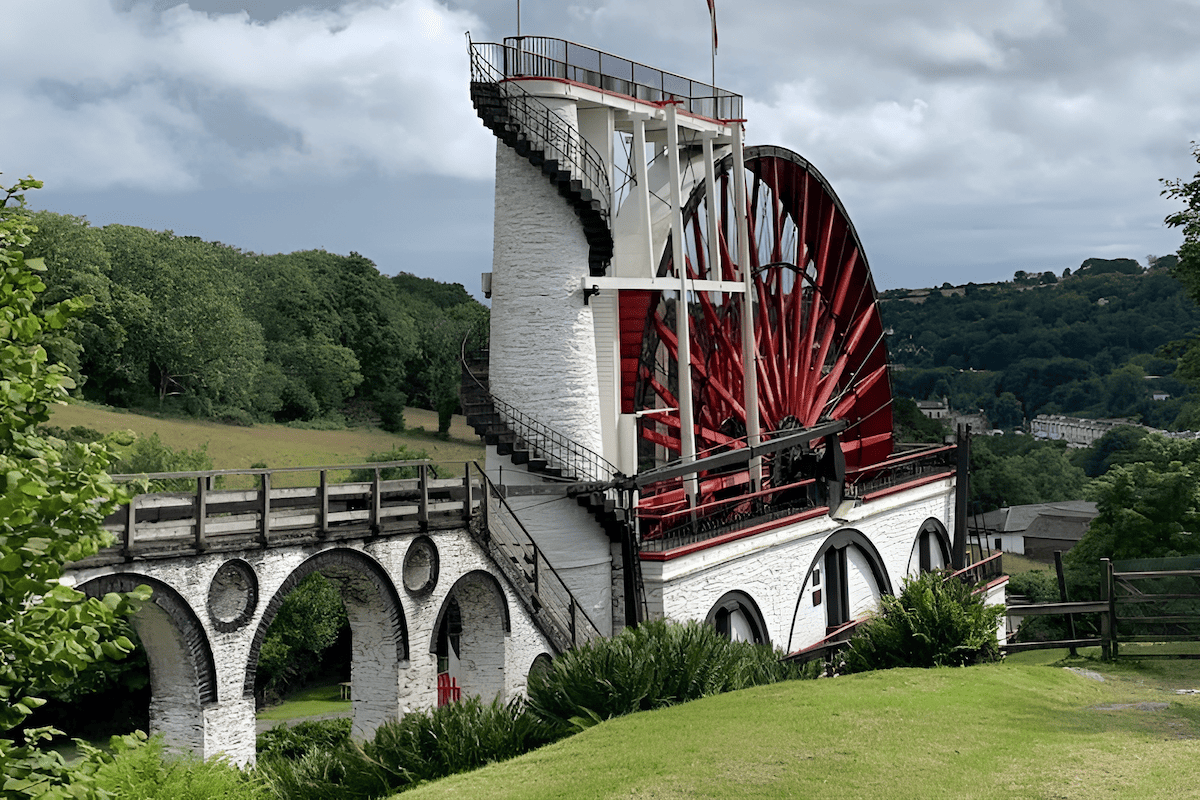

On the Isle of Man stands another remarkable example of water-wheel engineering—the Laxey Wheel, also known as Lady Isabella. Built in 1854 during the Victorian era, this monumental structure showcases the extraordinary engineering capabilities of the time. Constructed primarily of timber and iron, it was designed to pump water from the Great Laxey Mine, allowing deeper extraction of lead and zinc ores.

Today, the Laxey Wheel is widely regarded as the largest working water wheel in the world. Its size, setting, and historical value continue to attract visitors from around the globe, reminding us how wood-framed water wheels once powered the engines of the industrial revolution.

Components and Construction of Wood Water Wheels

At their core, wood water wheels are simple machines built from carefully chosen timber and fasteners—but their durability depends on good design. A typical wheel consists of a large circular frame, traditionally made of heavy timbers, fitted with a series of paddles or buckets around its rim. These blades capture and use the kinetic energy of flowing water.

The wheel is mounted on a central axle, which serves as the pivot for rotation. The axle transfers rotational energy through gears or belts to the machinery being driven. Bearings at each end of the axle reduce friction, allowing smooth, continuous operation and extending the life of the wheel.

Placement is critical. A wheel must sit in a stretch of river or mill race where the flow is strong, predictable, and controllable. As water strikes the paddles or fills the buckets, it imparts its energy, turning the wheel and converting the motion of the stream into useful mechanical power.

Different woods are chosen for different parts of the wheel:

Oak: Known for its strength and durability, oak is often used for the main structure—rims, spokes, and hubs. It withstands repeated wetting and drying better than many species.

Pine: Lighter than oak, pine is sometimes used for paddles or buckets, where reduced weight makes the wheel easier to start and turn.

Cedar: Naturally resistant to decay and insects, cedar is a good choice for exposed components and cladding.

Beech: Dense and hard, beech is suitable for gears, shafts, and closely-fitted parts due to its fine, even grain.

Every timber piece must be accurately sized and carefully aligned. Loose joinery, poor balance, or inadequate bearing surfaces can quickly wear a wheel out. Well-built wheels, however, can run for many decades with routine maintenance.

Stream Flow and Water Wheel Mechanics

To understand how wood water wheels work, it helps to look at basic stream mechanics and how moving water is converted into torque.

Stream Flow Mechanics

Kinetic Energy in Flowing Water: Moving water carries kinetic energy that depends on its velocity and volume. Faster, deeper flow delivers more power to the wheel.

Energy Transfer to the Water Wheel: As water strikes paddles or fills buckets, its kinetic energy is transferred to the wheel, causing rotation and generating mechanical power that can be used to drive millstones, saws, pumps, or small generators.

Working of a Water Wheel

Torque Generation: The key output of a water wheel is torque—the rotational force on the shaft. Torque depends on water speed, flow rate, wheel diameter, and the shape and placement of paddles or buckets.

Factors Influencing Torque and Efficiency:

• Speed and Volume of Water: Faster and more voluminous flow carries more energy and can drive larger loads.
• Wheel Size and Design: Larger-diameter wheels generate more torque at lower RPM; overshot and breastshot designs are more efficient than simple undershot wheels.
• Paddle or Bucket Shape: Curved or angled blades capture more water energy and reduce splash losses.
• Component Efficiency: Well-aligned bearings, properly balanced wheels, and smooth gearing reduce friction losses and increase useful power.

By matching wheel design to local stream conditions—head, flow rate, and seasonal variation—builders can maximize power output from even modest creeks.

Water Wheel Restoration and Preservation

Restoring historic wood water wheels is an important part of preserving both local heritage and traditional engineering knowledge. Many surviving wheels have suffered decades of neglect, decay, or mechanical damage.

A proper restoration begins with a detailed inspection and documentation of the existing structure. Craftspeople and engineers identify which pieces can be repaired and which must be replaced, often using the same species and joinery methods as the originals. Missing components, such as paddles, spokes, or gearing, are recreated from old drawings, photographs, or physical clues left in the remaining framework.

In some cases, discreet use of modern materials—such as hidden stainless fasteners or upgraded bearings—improves durability without changing the wheel’s historic appearance. The goal is a safe, stable, and, where possible, functional restored water wheel that accurately represents its era.

After restoration, ongoing maintenance is essential: lubricating bearings, tightening hardware, replacing worn paddles, and keeping channels free of debris. Public education—through tours, interpretive signage, and school programs—helps build support for the funding needed to keep these machines turning.

Modern Water Wheels and Their Applications

Modern “water wheels” have evolved into a wide family of micro-hydro turbines and low-head generators designed to produce electricity as well as mechanical power.

Hydroelectric Power Generation

• Hydropower Technology: Contemporary systems use turbines and generators instead of millstones and saws, but the principle is the same—convert moving water into useful work. Small turbines on farm streams or irrigation canals can provide off-grid electricity for homes, workshops, or remote facilities.
• Design Variations: Pelton wheels serve high-head, low-flow sites; Francis turbines fit medium to high head; Kaplan turbines work well in low-head, high-flow rivers. Simple modern paddle wheels still have a place in very low-head, slow-moving water where traditional turbines are less effective.

Water Management and Environmental Uses

• Flood Control and Irrigation: In some systems, turbine intakes and tailraces double as flow-control structures, helping manage water levels and deliver controlled irrigation.
• Wastewater Treatment: Paddle-type wheels are used in treatment ponds to aerate water, improving oxygen levels and supporting the breakdown of pollutants while also generating a modest amount of power.

Versatility and Long-Term Potential

• Adapting an Old Idea: From historic timber mills to quiet modern micro-hydro sites, water wheels show how an ancient technology can be adapted to modern needs.
• Contribution to Renewable Energy: Properly sited modern water wheels and turbines provide steady, predictable renewable energy with a relatively small footprint, helping reduce reliance on fossil fuels.

Whether preserved as working museum pieces or reinvented as small hydroelectric systems, wood water wheels remain a powerful symbol of low-carbon power and practical engineering that works with the landscape instead of against it.
