WIND POWER • RENEWABLE ENERGY • HISTORIC TECHNOLOGY
Wondering how wood windmills work and why they were so important historically? Wood windmills are early renewable energy systems that convert wind into mechanical power used for grinding grain, pumping water, and powering machinery.
🌬️ Quick answer: Wood windmills use rotating blades (sails) to capture wind energy, turning a shaft and gears that power tools, mills, or pumps.
They were the original wind-powered engines — providing reliable energy long before electricity.
From ancient Persia and early Chinese irrigation systems to the iconic wooden windmills of Europe, these machines powered entire communities wherever steady winds were available.
In regions like the Netherlands, windmills were used not only for milling grain but also for water management, helping reclaim land from the sea and protect low-lying landscapes.
Today, historic wooden windmills still stand as symbols of sustainable engineering, showing how simple materials and clever design can harness natural energy effectively.
Some traditional windmills were used to pump water and reclaim entire landscapes, turning wetlands into farmland using only wind power.
POST MILL • SMOCK MILL • TOWER MILL
Wondering what types of wood windmills exist? Traditional designs evolved based on local wind conditions, terrain, and the tasks they were built to perform.
🏗️ Quick answer: The three main types are post mills, smock mills, and tower mills, each with different structures and methods of turning into the wind.
Each design reflects a balance of simplicity, strength, and efficiency.

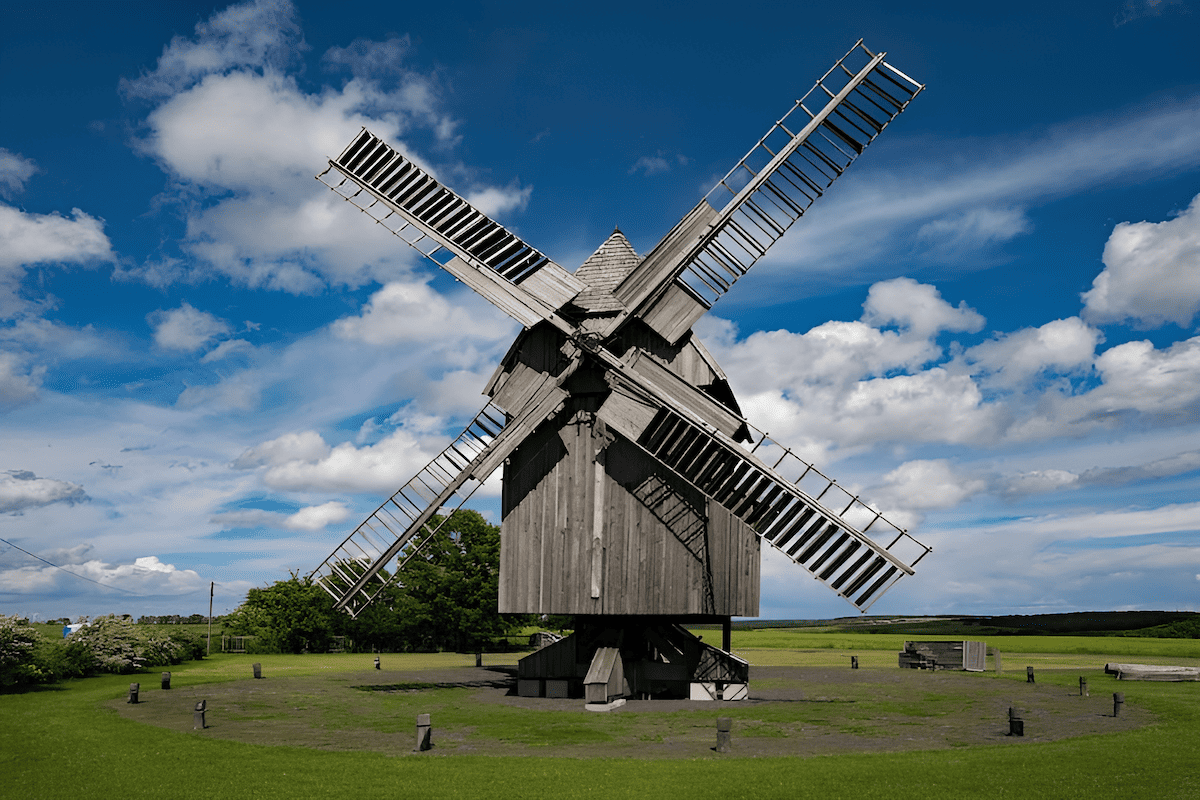

The post mill is one of the earliest and most recognizable designs. In this type, the entire wooden body of the mill—including the sails—is mounted on a single vertical post, allowing the whole structure to turn and face the wind.
This simple but ingenious system made post mills relatively easy to build and maintain, and they became widely used across Europe for grinding grain in small agricultural communities.
More advanced designs like smock and tower mills improved efficiency and durability, allowing larger structures and more complex mechanical systems.

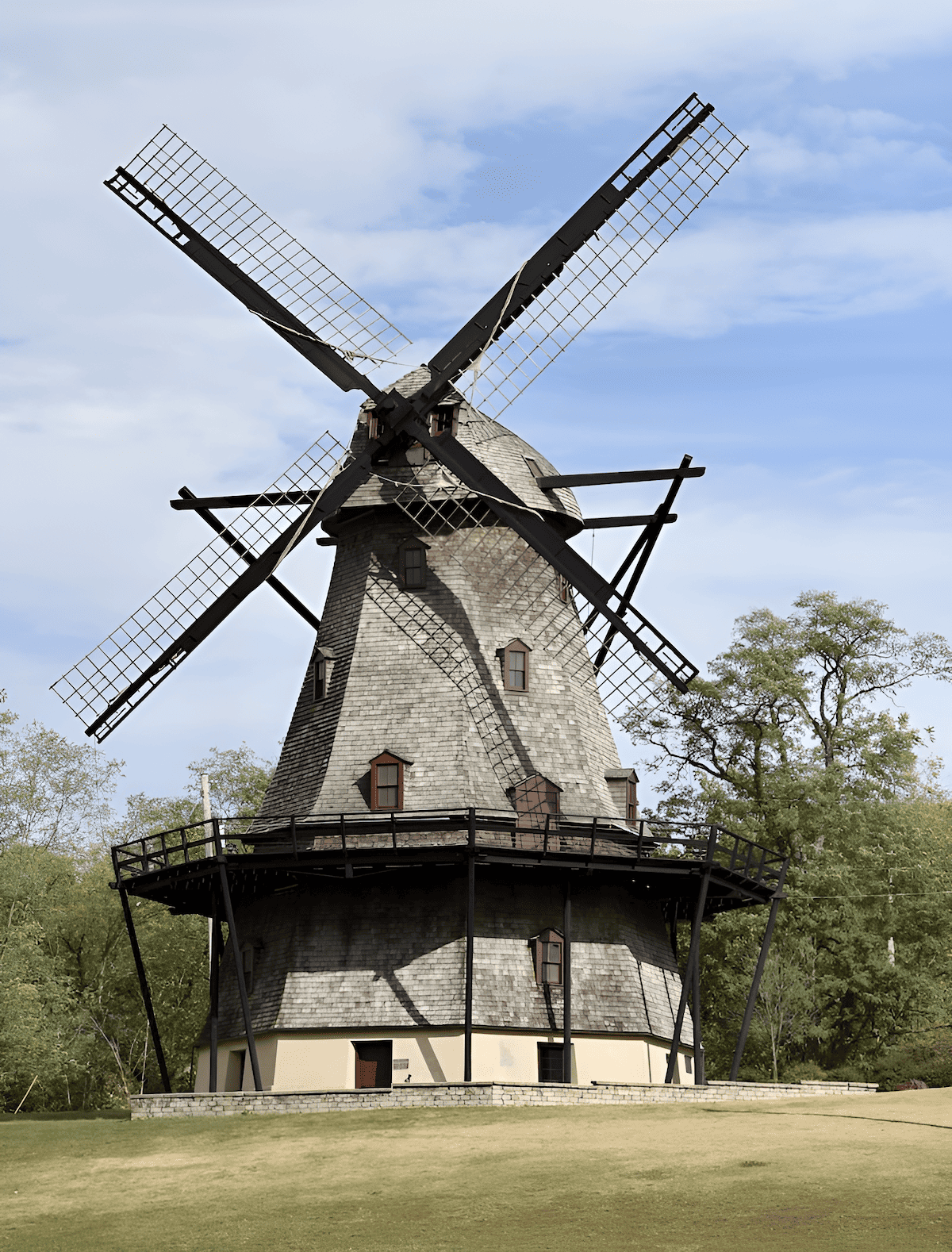

The smock mill is a later evolution of the post mill concept. It features a fixed wooden tower, often clad in vertical boarding or thatch, with only the cap (the top section holding the sails and main shaft) rotating to face the wind. Because the heavy tower no longer needs to turn, smock mills can be built taller and more robust than post mills, with more room inside for machinery. Their flexible cap allows the sails to be oriented into variable winds and makes smock mills well-suited for coastal or open landscapes where wind direction changes frequently.

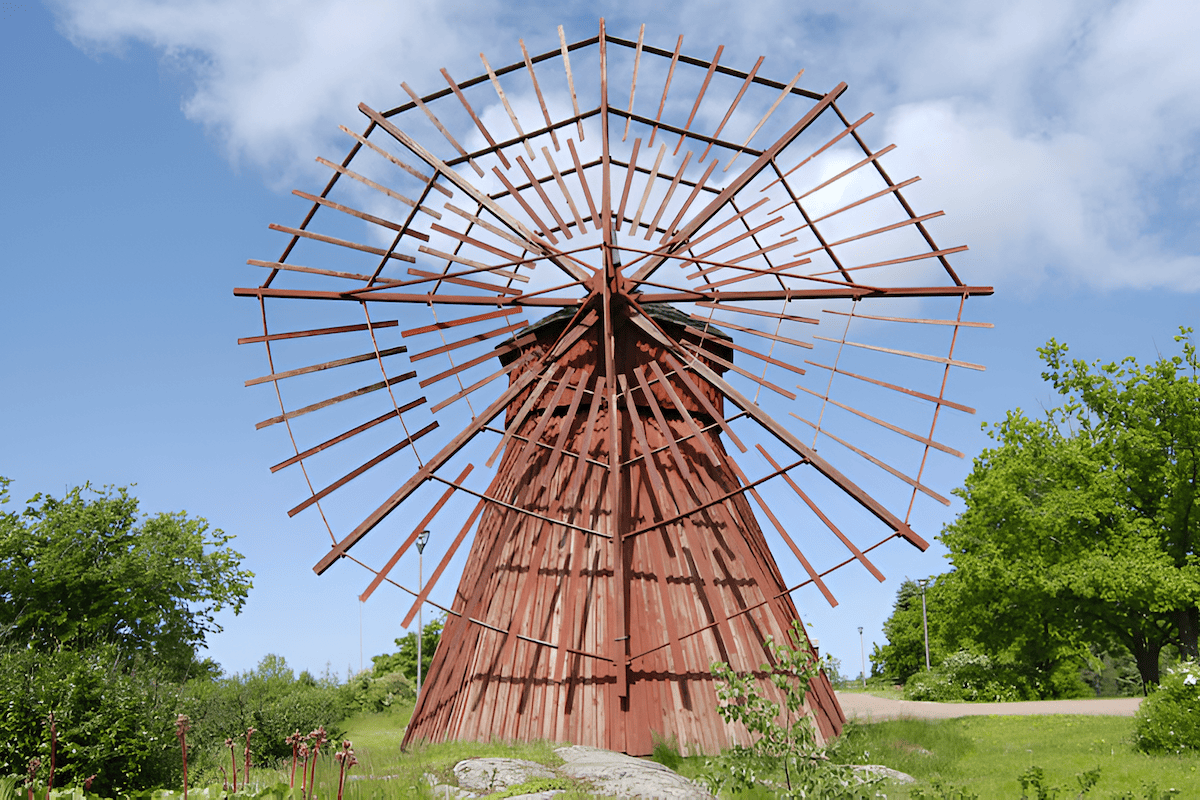

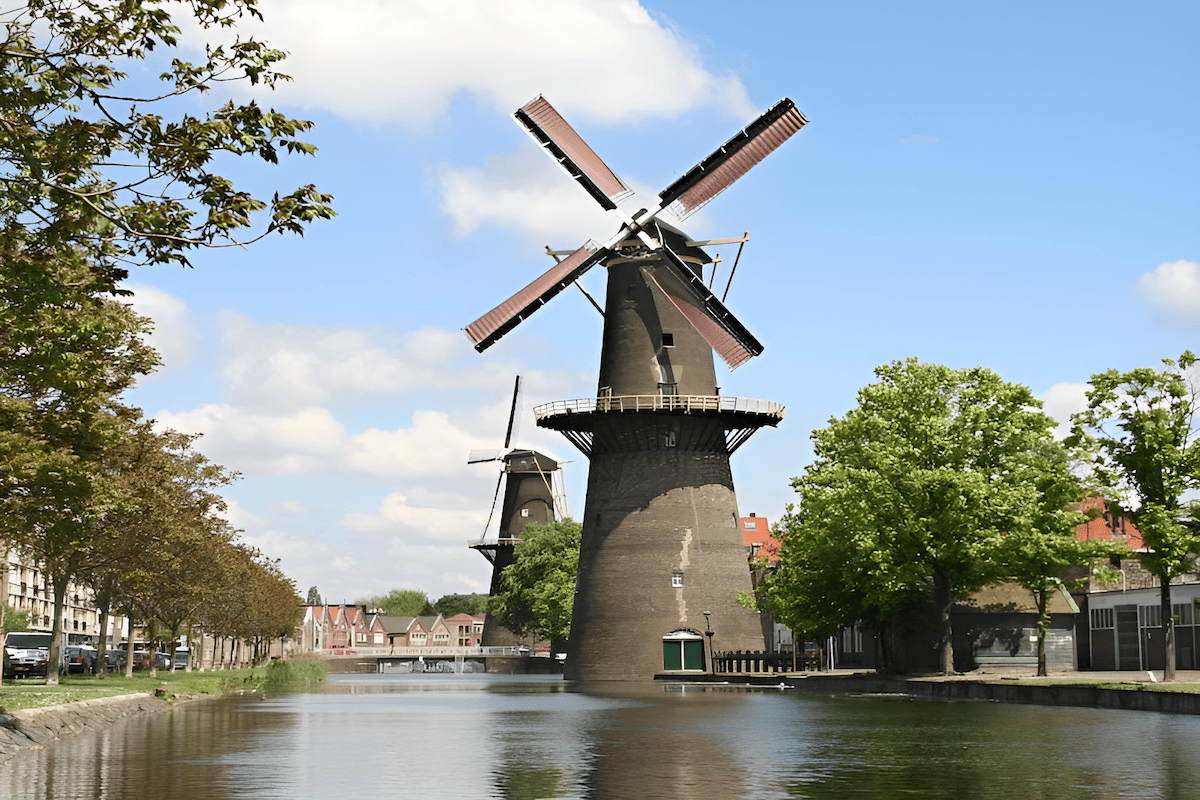

The tower mill pushes the height and capacity of wooden windmills even further. Built on a tall, usually cylindrical tower of timber, brick or stone, these mills carry larger, longer sails that reach stronger, less turbulent winds higher above the ground. The rotating cap allows the sails to be turned into the wind while heavy machinery is housed safely inside the tower. Tower mills were often used where strong, consistent winds could deliver higher output, such as coastal regions and exposed hilltops. Their tall silhouettes and four sweeping sails have become the classic image of “old European windmills”.
The effectiveness and reliability of a wooden windmill depend on the quality of its main components and how well they work together to transform wind into usable power.
At the front are the sails or blades, which catch the wind and start the entire process. Traditional sails are carefully framed and covered with cloth or boards. They are often made from resilient hardwoods like oak or elm that can withstand repeated loading and weather exposure. The angle, surface area and profile of the blades control how efficiently a wood windmill converts wind energy into rotation.
The sails are bolted to a central hub that transfers their motion to the main shaft. This long wooden or metal shaft passes into the body of the mill and drives a system of gears and cogs that tailor the speed and torque for different jobs. In some installations, the windshaft may be timber; in others, a forged iron or steel shaft is used for extra strength.

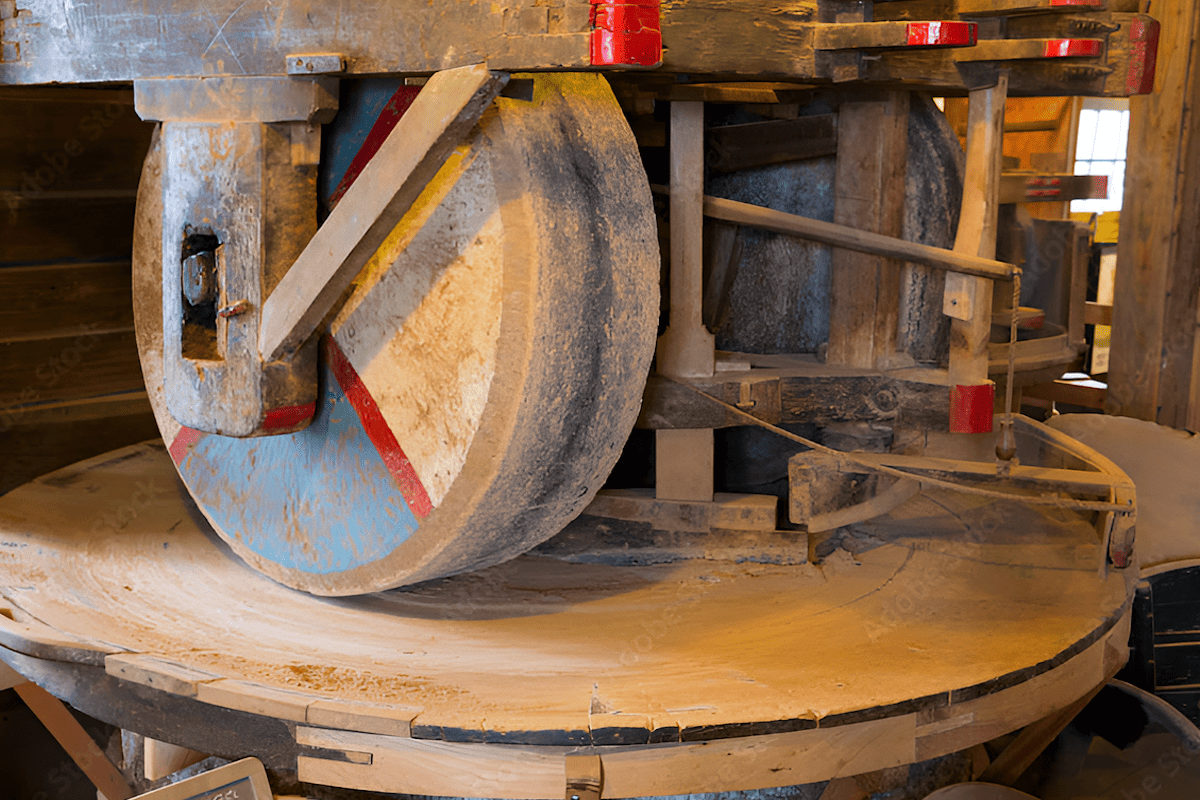

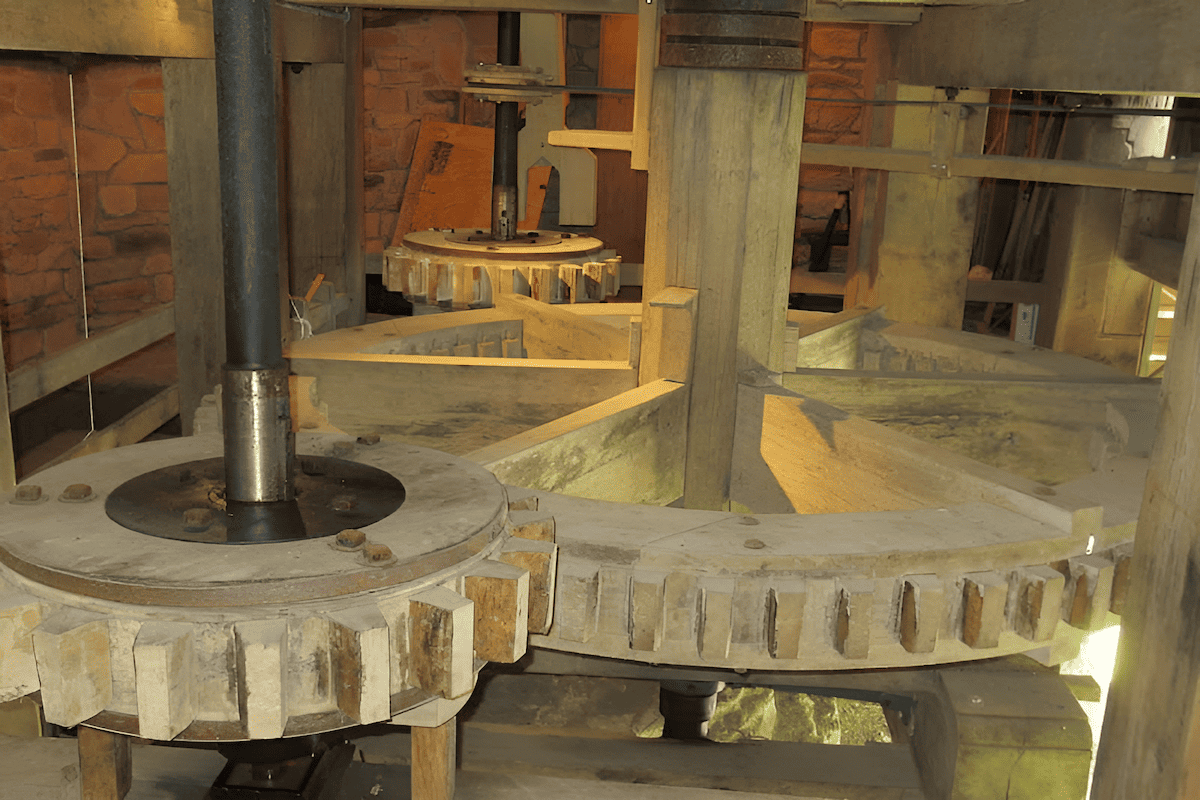

Inside, a complex train of wooden gears and cog wheels multiplies or reduces speed and transmits power to the working machinery. In a gristmill, the gearing turns one or more pairs of heavy millstones to grind grain into flour. In a sawmill, the same rotational power might drive a vertical frame saw or circular saw to cut boards, beams and veneer stock. For pumping water, the gears can turn a crank, piston pump or scoop wheel.
Because wind can be gusty and unpredictable, wood windmills are also equipped with a brake system. A simple wooden brake shoe or band can be applied to the main gear to slow or stop the sails. This is essential for safely operating in high winds, performing maintenance and protecting the mill from damage.
For most of their history, wooden windmills were built for one reason: to perform hard work using free wind instead of human or animal muscle. In farming communities, they were central to grain production. A single well-sited windmill could grind grain for several villages, turning harvests of wheat, rye, barley or corn into flour and meal. This mechanization freed labor for other tasks and helped stabilize food supplies through good and bad seasons.

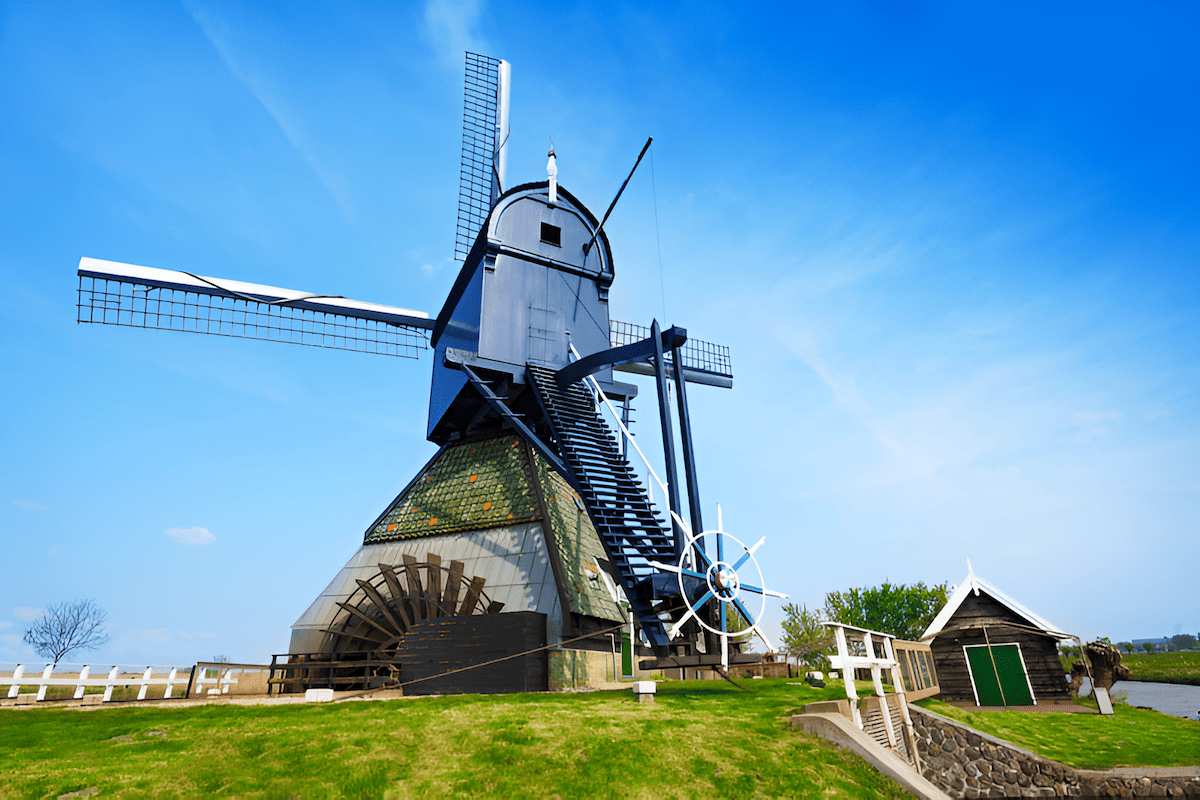

Wood windmills were equally important for water management. In low-lying areas, especially the Dutch polders, they pumped water out of marshes and flooded land to create productive fields and pasture. Elsewhere they lifted water into canals, storage ponds and irrigation systems to support crops and livestock. This ability to move water with wind power linked wooden windmills closely with traditional water wheel technology as complementary, nature-based infrastructure.
In industry, wind-powered sawmills turned logs into boards, beams and structural members for houses, barns and timber-framed ships. The same wooden gears and shafts could also drive presses to crush oilseeds, power early paper mills or run simple textile machinery. In many regions, wooden windmills were the first step toward industrialization, providing renewable mechanical power long before coal-fired steam engines and electricity.
Because wood windmills rely solely on the wind, their environmental footprint is minimal. When paired with sustainably managed forests and long-lived structures, they offer a truly low-carbon, circular use of timber resources.
Historic wood windmills are now protected as important cultural heritage sites across Europe, North America and parts of Asia. They showcase traditional carpentry, early engineering and community-scale renewable energy in one structure. Many countries have national or regional programs dedicated to restoring and maintaining old windmills as museums, working landmarks or educational centers.
In the Netherlands and surrounding countries, wooden Dutch windmills have become symbols of national identity. Carefully restored mills still turn on windy days, grinding grain or pumping water for demonstrations. Visitors can walk inside, inspect the massive beams and wooden gears, and experience the sound and movement of a working windmill. Similar preservation efforts are underway for historic mills in England, Germany, Scandinavia and North America, where early settlers brought European windmill technology to the “New World”.

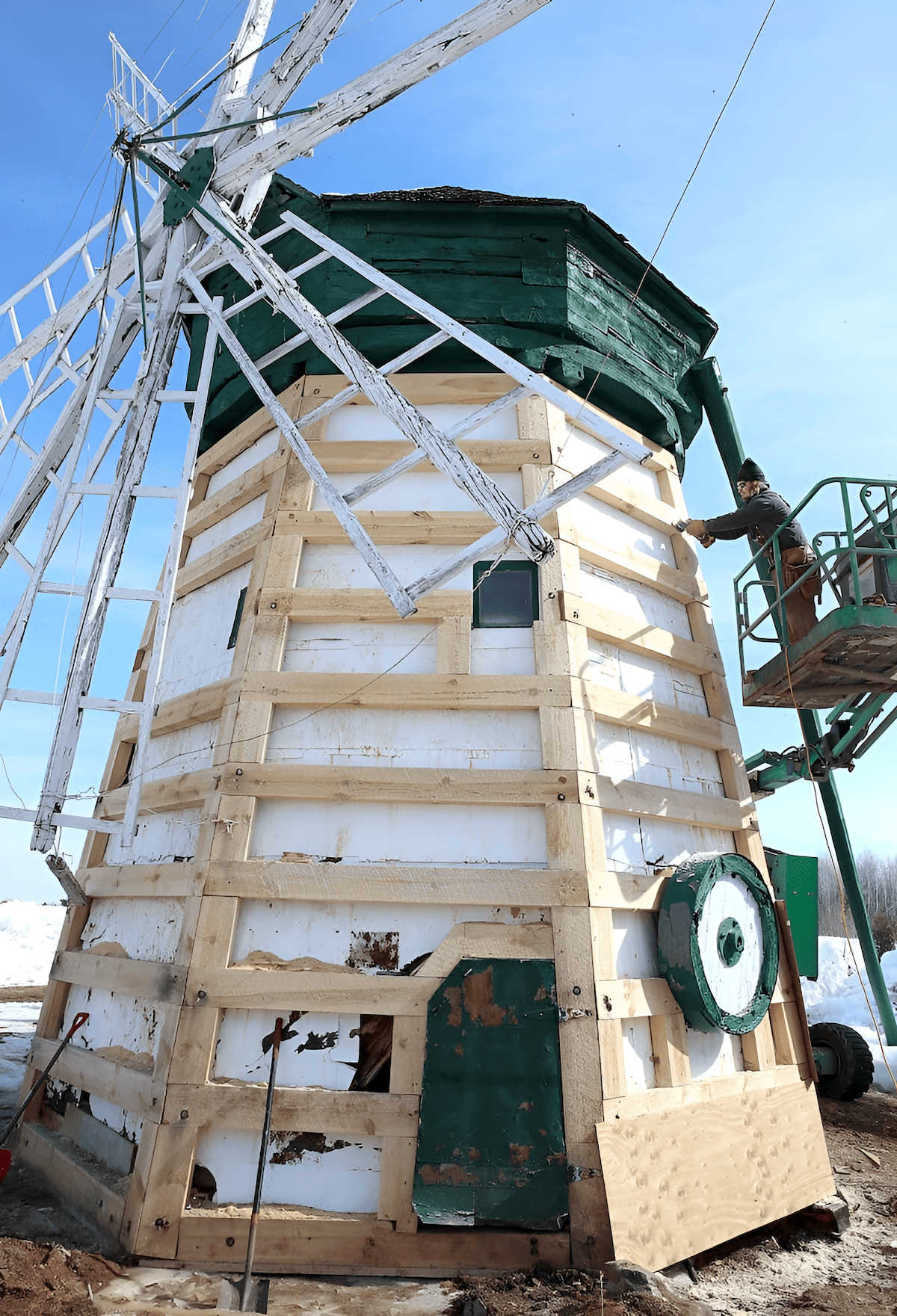

As interest in low-carbon, small-scale energy grows, many designers and enthusiasts are revisiting traditional wood windmill designs for modern off-grid applications. Hybrid projects combine classic timber towers and sails with hidden steel shafts, modern bearings and compact generators. These systems provide small amounts of electricity for farms, homesteads and eco-tourism projects while preserving the appearance of an old windmill on the landscape.
Modern wooden windmills benefit from improvements in aerodynamics, materials and control systems. While the structures still rely heavily on timber, designers may pair durable species like western red cedar, larch or treated pine with composite leading edges or laminated spars for extra strength. Blades are optimized using knowledge gained from modern wind turbines, with twist, taper and efficient profiles that extract more energy from the same wind.
On the control side, today’s wood windmills can incorporate automatic yaw and pitch systems, electronic overspeed protection and remote monitoring. Small sensors track wind direction, speed, shaft RPM and vibration, while simple controllers adjust the sails or apply the brake when needed. These upgrades reduce wear, extend service life and make wooden windmills safer and more reliable – even in remote locations.
Because these updated wood windmills still use natural materials and traditional forms, they fit aesthetically into historic villages, farms, eco-resorts and heritage landscapes, while quietly delivering modern renewable energy services.

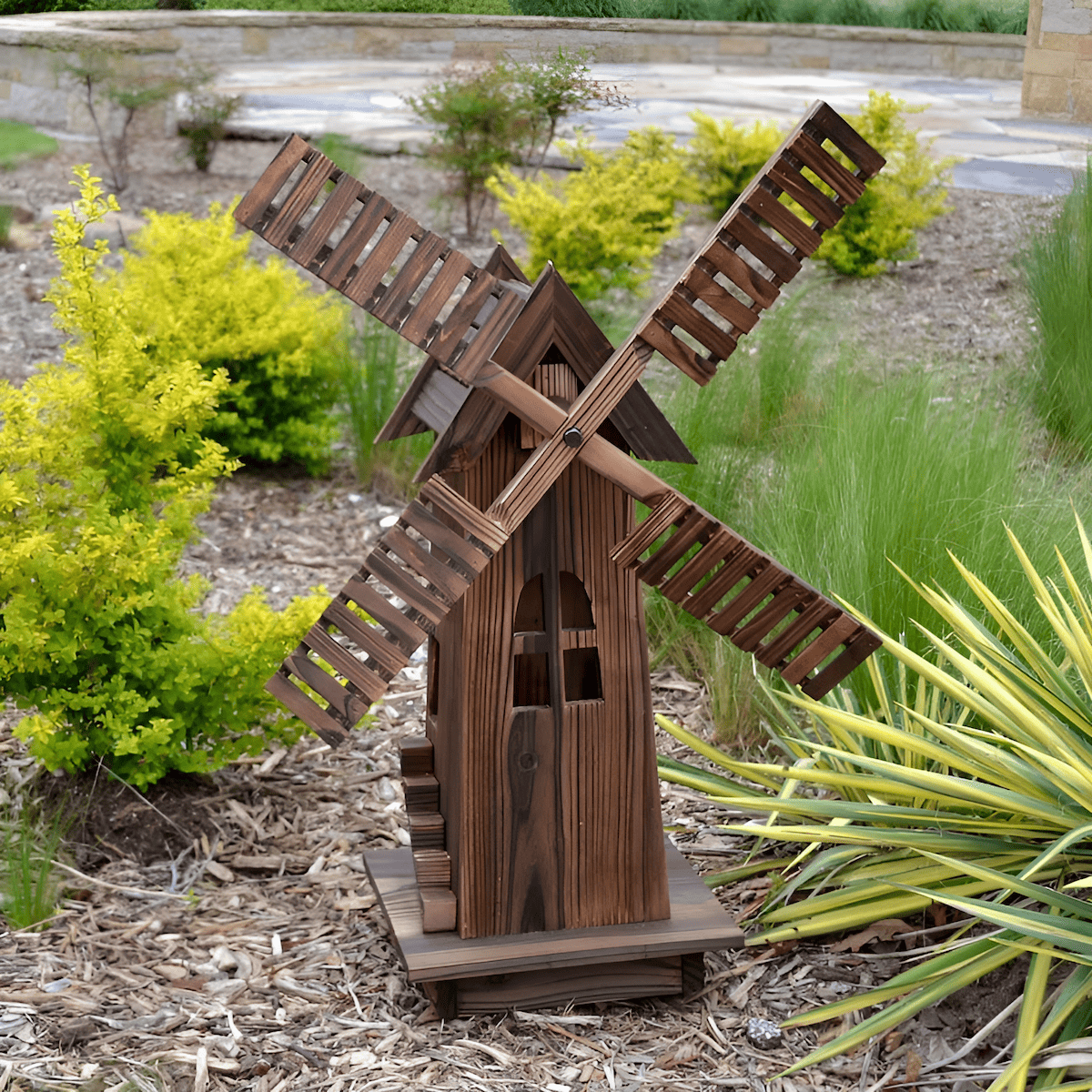

The appeal of wood windmills also lives on in miniature. Model and toy wood windmills are popular with hobbyists, teachers and parents as hands-on tools for explaining wind energy, gearing and basic mechanics. Simple classroom kits allow students to assemble a small wooden windmill and see how blades, shafts and gears work together to lift a weight, pump water or turn a tiny generator.
These educational models make abstract ideas – like converting kinetic energy in the wind into mechanical or electrical energy – easy to see and touch. They also link discussions of renewable energy, climate change and sustainable design to a tangible object students can build themselves. For many children, a small wooden windmill may be their first encounter with engineering concepts, inspiring future study in science, technology and environmental fields.
Decorative tabletop windmills and garden windmills are also used as design accents, connecting homes and gardens to the long history of working wooden mills in farming and coastal communities.
From grinding grain and pumping water to powering saws and small generators, wood windmills show how renewable energy can be simple, durable and beautiful. Their long history proves that carefully sited, well-built wooden structures can provide reliable mechanical power for hundreds of years with minimal environmental impact.
As communities look for low-carbon, nature-based solutions, eco-friendly wood windmills offer a compelling option: local materials, traditional craftsmanship, and modern engineering blended into one project. Whether restored as heritage landmarks, updated as micro-wind systems, or used as teaching tools alongside wood water wheels and other historic technologies, wooden windmills continue to remind us that the future of energy can still be rooted in the wisdom of the past.
