PORTABLE • TRACTOR-POWERED • LUMBER

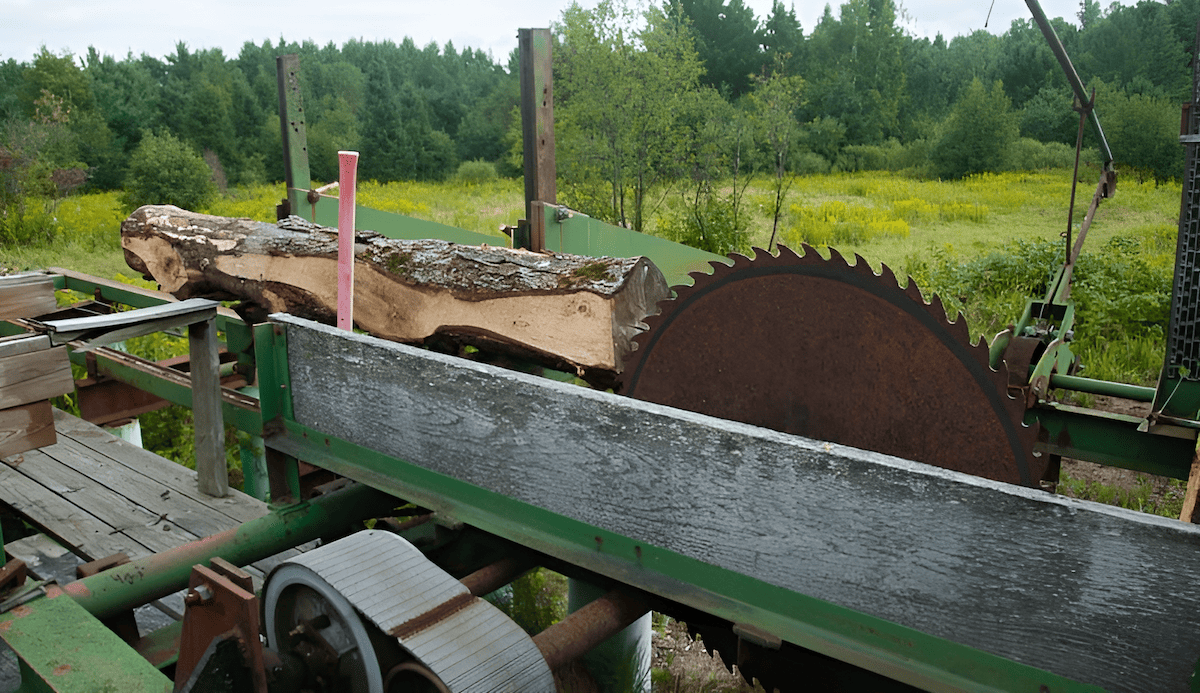

Wondering what a PTO-driven mobile sawmill is? A PTO sawmill uses a tractor’s Power Take-Off (PTO) to drive the cutting system, turning your tractor into a portable sawmill capable of producing lumber directly in the field or woodlot.
🪵 Quick answer: A PTO sawmill connects to your tractor’s PTO shaft and uses that power to cut logs into boards, beams, and slabs on-site, eliminating the need to transport logs to a stationary mill.
Example: A landowner can mill storm-damaged trees or thinnings directly at the landing, converting logs into usable lumber in minutes instead of hauling them off-site.
PTO-driven sawmills are ideal for small woodland owners, farms, and homesteads, offering a low-overhead way to turn logs into valuable lumber at the source.
Jump to:
Jump to: How PTO Sawmills Work • Tractor Requirements • Lumber Output • PTO vs Gas • Durability in the Woods • Norwood HD36 • DH-40 Wood Chipper • Harnessing PTO Power • Sawmill FAQ
A PTO-driven mobile sawmill connects directly to the tractor’s PTO shaft, transferring rotational power into the sawmill’s cutting system. This power drives band wheels, circular blades, or chainsaw-style bars depending on the mill design.
Because the tractor supplies the engine power, the sawmill itself remains compact and mobile. Units can be quickly transported to a log landing, field edge, or forest road, allowing logs to be processed exactly where they are felled.
Most PTO sawmills require a tractor with sufficient horsepower and a standard PTO output (commonly 540 RPM). The required power varies depending on log size and sawmill type, but adequate torque is essential for consistent cutting performance.
PTO sawmills can produce a wide range of products, including:
This flexibility allows landowners to capture more value from their trees while reducing waste and maximizing on-site efficiency.
COMPARE • POWER • PORTABILITY
Wondering which is better—a PTO or gas-powered sawmill? The answer depends on your setup: PTO sawmills use your tractor for power and are ideal for farms and woodlots, while gas sawmills have their own engine and offer standalone flexibility.
⚖️ Quick answer: Choose a PTO sawmill if you already own a tractor and want lower operating costs; choose a gas sawmill if you need portability without relying on other equipment.
Example: A landowner with a 40–60 HP tractor can run a PTO mill efficiently on-site, while a contractor working across multiple locations may prefer a gas mill that can operate independently.
| Feature | PTO Sawmill | Gas Sawmill |
|---|---|---|
| Power Source | Tractor PTO | Built-in gas engine |
| Portability | Requires tractor | Fully standalone |
| Operating Cost | Lower (uses existing tractor) | Higher (separate engine fuel + maintenance) |
| Maintenance | One engine (tractor) | Two systems to maintain |
| Best For | Farms, woodlots, landowners | Mobile crews, contractors |
If you already own a tractor, a PTO sawmill often delivers the lowest cost per board foot, while gas mills provide flexibility for off-site or commercial milling operations.
DECISION GUIDE • COST • USE CASE
Wondering which sawmill is right for your property or operation? In general, a PTO sawmill is best for landowners who already own a tractor and want to mill logs cost-effectively on-site, while a gas sawmill is better for users who need a fully self-contained machine that can operate independently.
⚙️ Quick answer: Choose a PTO sawmill if you have a properly sized tractor, work mainly on your own land, and want lower long-term operating costs. Choose a gas sawmill if you need maximum flexibility, independent mobility, or plan to mill in multiple locations without relying on a tractor.
Choose a PTO sawmill if:
Choose a gas sawmill if:
Example: A farm owner processing storm-damaged trees and periodic thinnings may get the best value from a PTO mill, while a custom sawyer traveling between rural properties may benefit more from a gas-powered model.
The right choice depends on your existing equipment, milling volume, travel needs, and long-term cost goals. For many small landowners, the decision comes down to a simple question: do you want to power the mill with a tractor you already own, or pay for the convenience of a dedicated engine?
The true revolution in a PTO-driven mobile sawmill is not just that it cuts logs—it transforms how and where you can process timber. Instead of a fixed mill site with buried utilities and permanent foundations, you get a mobile band mill that goes wherever the tractor can drive: forest skid trails, shelterbelts, farm yards, and remote properties.
By using the tractor’s PTO instead of a dedicated gas or diesel engine, you:
From a sustainability perspective, a PTO-powered sawmill is an energy-efficient way to convert logs into lumber. You avoid multiple handling steps—no need to load raw logs on trucks, drive them to a commercial mill, and haul finished boards back. Every mile of hauling you eliminate helps lower your carbon footprint and reduces wear on access roads.
Most PTO mills are engineered for fast setup and breakdown. The frame, track, and head can be positioned, leveled, and ready to cut in a short time, then disassembled and moved to the next site. This “mill-on-demand” approach is especially attractive for tree farms, forestry contractors, and landowners harvesting small volumes across multiple locations.
An efficient PTO portable sawmill is all about throughput per hour and minimal downtime. Because the tractor’s PTO can deliver substantial torque at low RPMs, these mills are capable of:
When paired with a well-organized log deck and helpers who can roll, clamp, and offload boards, a PTO portable mill becomes a high-output system. It can comfortably turn beech, oak, maple, or pine logs into timbers, slabs, or cants ready for drying and further processing.
For many operations, the biggest efficiency gain is logistical: instead of trucking every log to a commercial mill, you process it at the stump or landing. Offcuts and slabs can be chipped on-site for wood chips or firewood, leaving less waste to handle and ship.
A heavy-duty PTO chainsaw mill marries tractor power with a large chainsaw-style bar and chain. These mills are often built on a robust frame with height-adjustable rails, allowing you to slab oversized logs that would never fit a conventional band mill. They are especially useful for:
Because the cutting assembly is powered by the PTO, the chain maintains speed through dense and knotty sections. A heavy frame, rugged bearings, and quality bar oiling systems help extend chain life and maintain cut quality. When properly maintained, a PTO chainsaw mill is a reliable tool for high-value specialty cuts that complement your standard dimension lumber.
Not every landowner needs a full-size industrial mill. A compact PTO-driven lumber mill offers many of the same benefits in a smaller, more affordable package:
These compact mills are ideal for sawyers who primarily cut their own logs—thinnings, shelterbelt removals, or trees taken down around the homestead. You can produce framing lumber, siding, and decking from species such as white pine, spruce, or poplar, then use offcuts for firewood or chips.
By sizing the mill to the tractor you already own, you keep both purchase price and operating costs in check, making on-farm lumber production a realistic option for many small operations.
A high-performance tractor-mounted sawmill is built to run day in, day out in demanding conditions. With heavier frames, longer beds, and options for hydraulic log handling, these systems are geared toward woodlot professionals, small commercial mills, and farm businesses that cut significant volumes every year.
The investment can be well worth it if you:
In this range, features such as hydraulic log loaders, toe boards, board return systems, and power feed all contribute to higher output and less physical strain on the operator. When amortized over years of service and thousands of board feet, a high-performance PTO mill can be one of the most productive assets on the farm.
A robust PTO-driven log mill is engineered to survive rough backroads, uneven ground, and real-world logging sites. Heavy-duty frames, adjustable leveling jacks, and rugged axle assemblies help keep the track straight and the cut true, even when set up on a forest landing.
Durability matters when you are routinely handling large hardwood logs—beech, maple, oak—or dense softwoods. A well-built PTO log mill will feature:
Combined with a reliable tractor, this kind of mill provides years of service, turning standing timber into usable lumber right where it grows.

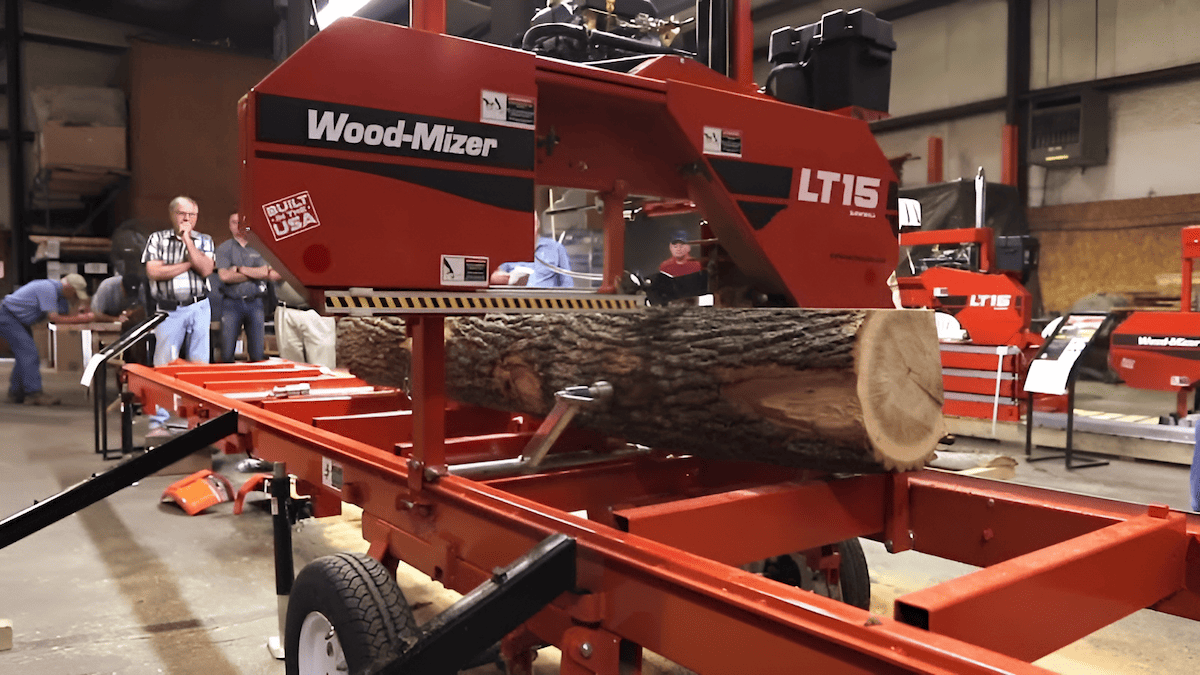

Wood-Mizer is one of the most recognized names in the portable sawmill world, and the LT15 has become a benchmark for small and mid-sized operations. The LT15 line is typically available with gas or electric power, and some owners adapt tractor power or auxiliary drives for field use; always confirm current configurations directly with the manufacturer.
As a reference platform, the LT15-style mill typically:
Even if you choose a different brand, the LT15-class portable band mill is a good benchmark for what a serious small sawmill can do in a compact footprint.

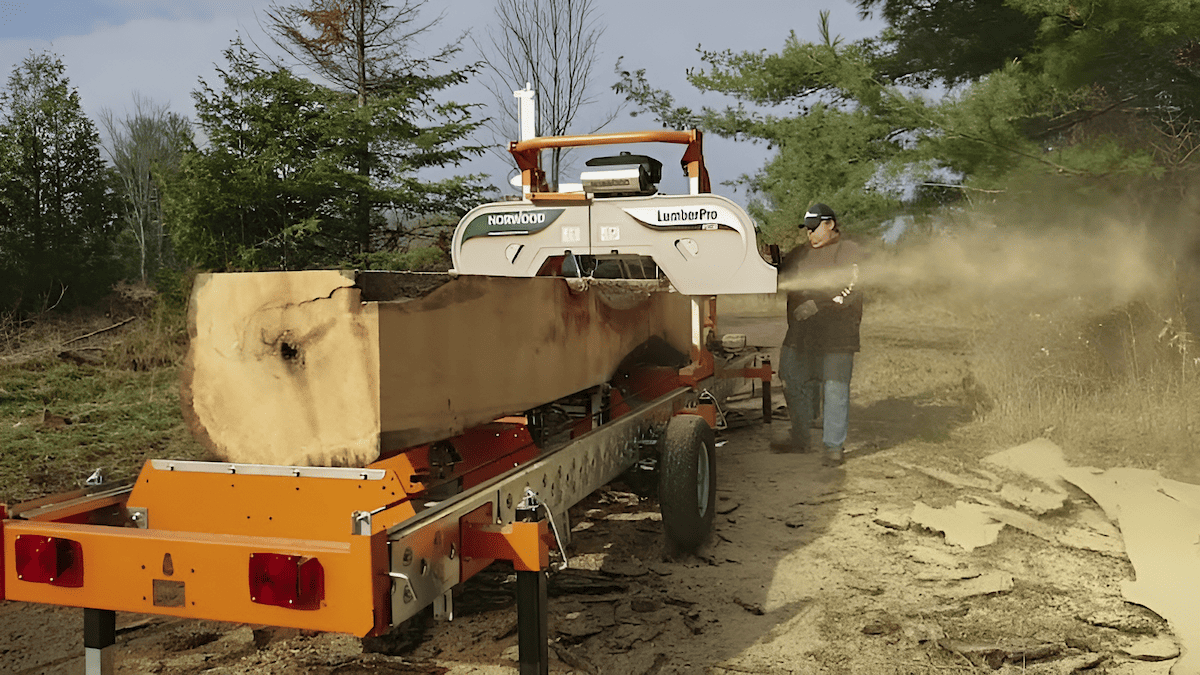

Norwood Sawmills has built a strong reputation for rugged, modular sawmills, and the LumberPro HD36 is one of their flagship models. In some configurations, the HD36 can be tractor-driven or adapted for PTO-style use, letting you tap into the horsepower you already have.
The LumberPro HD36 is designed to tackle large logs and heavy-duty milling:
For landowners with steady access to big logs and a capable tractor, a PTO-capable HD36-class sawmill offers a powerful blend of capacity and mobility.

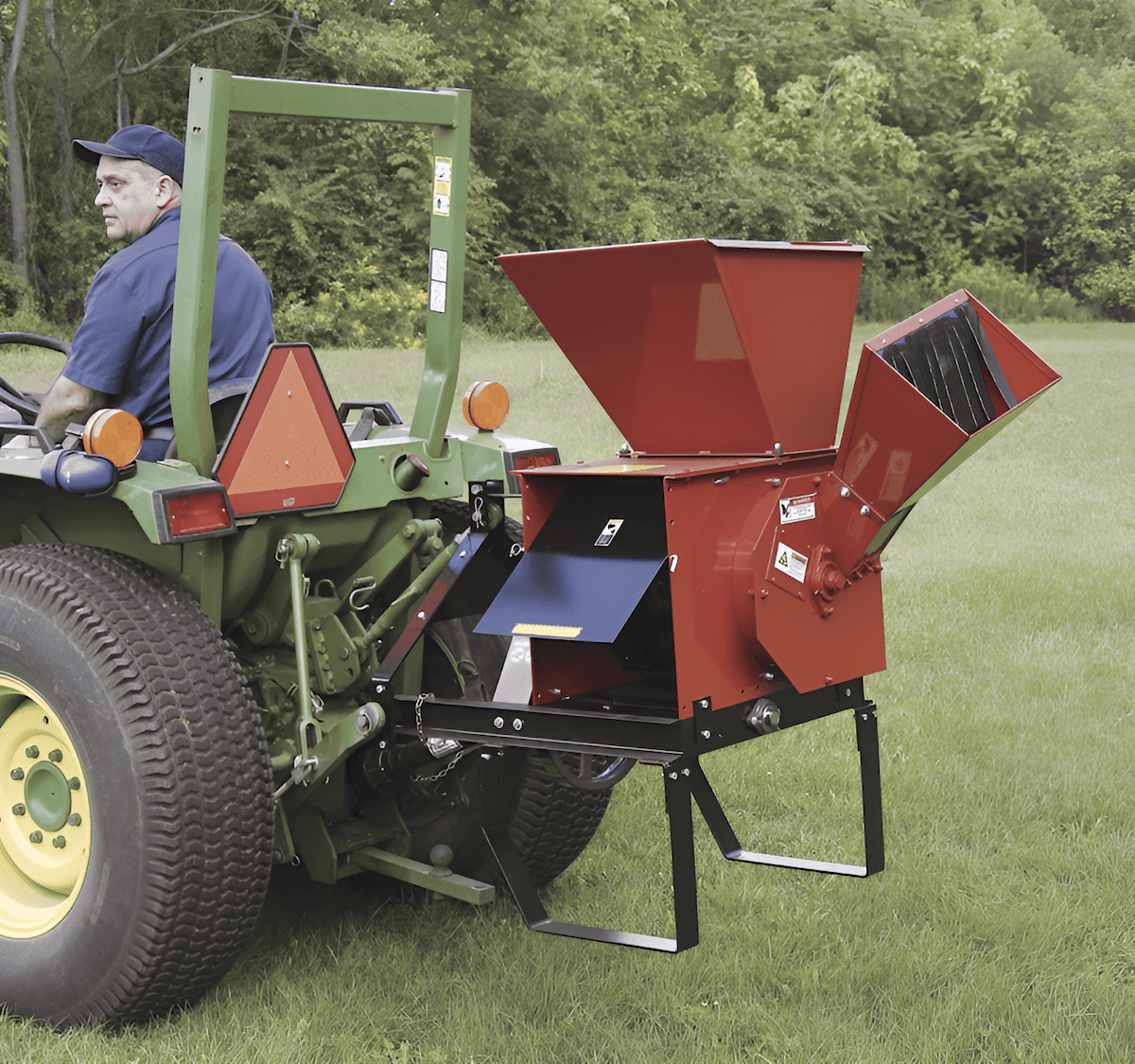

While not a sawmill, a PTO-driven chipper such as the Farmer-Helper DH-40 Wood Chipper pairs perfectly with a mobile milling setup. Oversized slabs, offcuts, and tops can be converted into wood chips for mulch, pathways, or biomass fuel instead of being burned or landfilled.
Typical DH-40–class features include:
Adding a PTO chipper to your rig helps close the loop: you mill the best sections into lumber, chip the remains, and leave the site cleaner and more productive.
Whether you choose a compact PTO band mill, a heavy-duty chainsaw mill, or a PTO-capable production sawmill, the core idea is the same: let your tractor do double duty. Instead of owning multiple engines, you put hours on the machine you already depend on for skidding, loading, and site prep.
PTO-driven mobile sawmills shine when paired with good forest management. You can selectively harvest trees, mill them on-site into beams, posts, siding, and flooring, and then use chips and residues for mulch or bioenergy. Hardwoods such as beech and softwoods like white pine can be converted into valuable timber products within a few hundred feet of where they grew.
For small woodland owners, farmers, and rural builders, that level of control over the wood supply is transformative. It reduces waste, lowers hauling and fuel costs, and keeps more of the value of the forest on the land itself. When paired with responsible harvesting and replanting, a PTO-driven mobile sawmill can be a key tool in a sustainable, local wood economy.
To power a PTO (Power Take-Off) sawmill, you need a tractor with sufficient horsepower and a compatible PTO output shaft to drive the mill’s cutting head. Smaller PTO portable sawmills can often run on compact tractors in the 20–30 HP range at 540 RPM, while larger mills and hardwood milling benefit from 40–50+ HP. If the mill uses hydraulic functions for log handling, be sure your tractor can supply enough hydraulic flow and pressure or plan on using a dedicated power pack.
Yes. A PTO-driven sawmill ties up your tractor whenever you are milling and adds engine hours, fuel use, and wear to that machine. Underpowered tractors can struggle with big hardwood logs, causing slower feed rates and inconsistent cuts. PTO alignment and driveline setup can take more time than a self-contained gas or diesel sawmill, and cut quality can suffer if engine RPM drops under heavy load.
Production depends on tractor horsepower, mill design, blade condition, log size, species, and crew experience. As a rough guide, smaller PTO mills paired with 20–30 HP tractors may produce around 300–600 board feet of lumber per day under good conditions. Larger PTO-driven band mills matched to 50+ HP tractors can often reach 800–1,200+ board feet per day with sharp blades, efficient log handling, and a steady feed rate.
It is possible to build a DIY PTO sawmill, but it requires solid fabrication skills (welding, machining), careful driveline design, and a strong focus on safety. Most home-built units use a steel frame, a bandsaw or circular saw head, a PTO-driven shaft with the correct gearing or pulleys, and a straight, rigid track. All rotating parts must be guarded, emergency stops should be included, and the structure needs to be engineered to handle log weight and vibration. Many builders start from a proven kit or set of plans and then adapt the design for PTO power.
Yes. PTO-driven sawmills can cut dense hardwoods such as oak, maple, or hickory, as long as they are paired with adequate tractor power and the right blades. For serious hardwood milling, a tractor in the 40–50+ HP range helps maintain blade speed and torque under load. Use sharp bi-metal or carbide-tipped bands, keep proper blade tension and tooth set, and slow the feed rate on thick hardwood logs to prevent overheating, waviness, or blade wander.
