Parts of a Wood Wagon Wheel

The design of a wooden wagon wheel is an elegant blend of practical engineering and skilled handiwork, where every single piece has an important job to do. Think of it as a carefully balanced structure: the hub at the center, the spokes radiating outward, and the rim and iron tire forming the outer ring—all working together to carry heavy loads over rough ground.

There is the hub, which is like the heart of the wheel, sitting at the center. From the hub, the spokes, like ribs or bones, radiate outward to support the outer circle. These spokes are crucial as they transmit weight and shock from the rim back to the axle. Finally, the rim and felloes, the parts that actually meet the iron tire, act like a continuous belt that connects all the spokes and keeps the wheel true and round. When all these parts work in harmony, they create a wheel that is strong enough to carry a loaded wagon yet flexible enough to survive thousands of miles of rutted trails.

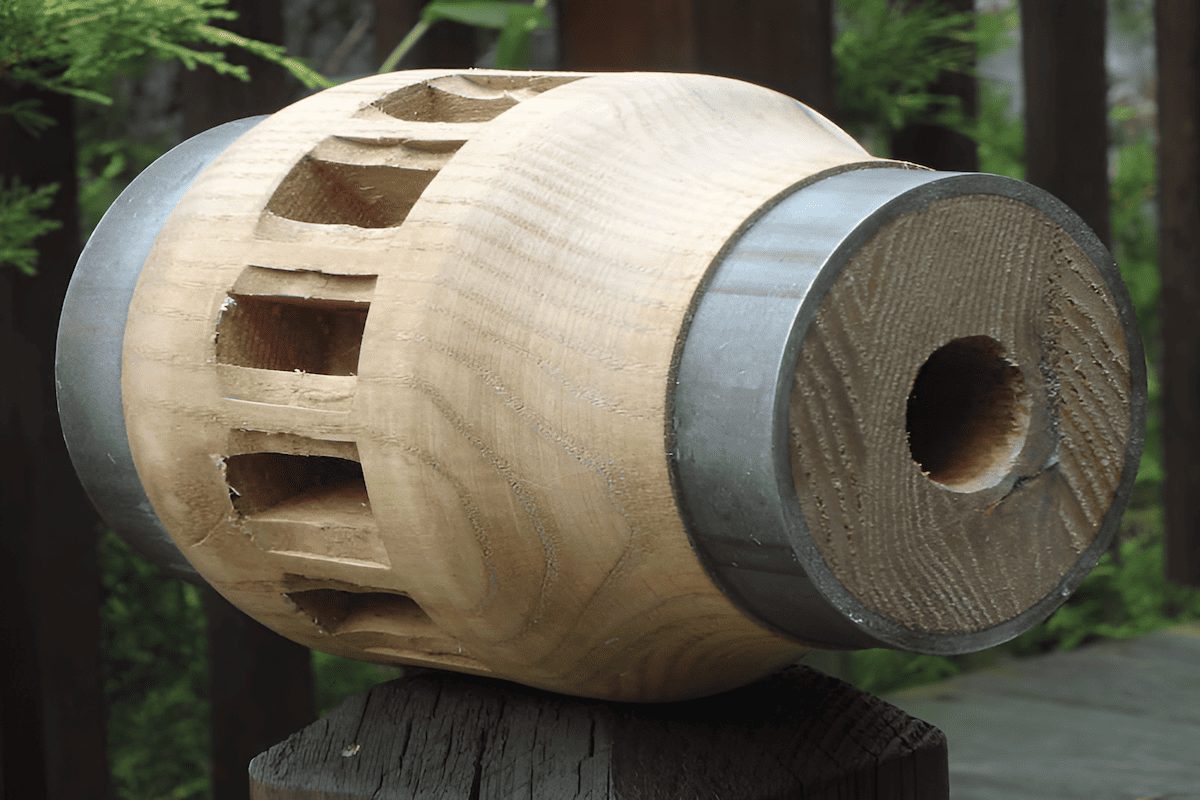

The hub, or the central part of the wheel, is key to its design. Typically crafted from a solid block of durable hardwood such as oak or elm, the hub houses the axle and serves as the foundation upon which the rest of the wheel is built. It must be strong enough to bear the weight of the wagon and its contents while also providing a stable, low-friction connection to the axle. The hub is bored carefully to accept the axle and drilled to receive the spokes at precise angles.

The spokes, radiating out from the hub to the rim, are made from flexible, knot-free wood, allowing them to absorb shocks and stresses from uneven terrain without breaking. Hickory and ash were preferred for spokes because of their combination of strength, resiliency, and shock resistance. The number of spokes in a wheel can vary, but each one is crucial for maintaining the wheel's shape and integrity under heavy frontier loads.

The rim and felloes form the outer circle of the wheel, onto which the iron tire is fitted. The rim, sometimes referred to as the fell, is made up of several curved segments called felloes. These felloes are precisely shaped and joined—often with tongue-and-groove or tenoned joints—to form a perfect circle, ensuring a smooth, stable roll and accurate fit for the tire.

The iron tire, a crucial component for durability, is a metal band that is heated and then fitted around the wooden rim. As it cools, the iron tire contracts, compressing the felloes, tightening the spokes, and locking the entire wheel together. This “shrunk-on” tire not only reinforces the wheel but also protects the wooden parts from wear, stones, and moisture. The method of fitting metal to wood helps maintain the wheel’s circular shape and provides additional strength—similar in principle to how wooden gear rims can be banded to resist splitting.

Together, these components create a wheel that is not only functional but also capable of withstanding the rigors of cross-country travel behind oxen, mules, or horses.

Types of Wood Used to Build Wagon Wheels

The selection of wood for constructing trail-worthy wagon wheels was a critical decision that impacted their durability, strength, and overall performance. Among the preferred choices, oak stood out for its exceptional strength and hardness. Oak was an excellent choice for hubs and felloes, as these parts bore the brunt of the load and stress. Oak’s tight grain and resistance to moisture also made it less prone to rot—a vital attribute for wheels that often travelled through rain, mud, and stream crossings.

Hickory was another popular choice, particularly for the spokes. Its notable flexibility and resilience allowed the spokes to flex under shock rather than shatter—essential when traversing rough, uneven terrain. This property of hickory helped maintain the structural integrity of the wheel during long and arduous journeys that could take months to a year or more.

Ash was also favored for certain components, often used where a balance of strength and elasticity was needed. This combination made ash suitable for both spokes and rims, providing good load-bearing capacity while still withstanding impact without breaking. Ash was relatively lightweight compared to oak or hickory, which helped reduce the overall wagon weight without compromising durability.

Maple and elm sometimes appeared in wagon wheels as well, especially where local availability dictated wood choices. The skillful selection and combination of these woods by wheelwrights allowed for the creation of wheels that were robust, long-lasting, and tailored to the specific needs and conditions of each journey. The choice of wood reflected a deep understanding of the material and a commitment to crafting wheels that were reliable over the long haul.

Traditional vs. Modern Methods of Building Wood Wagon Wheels

The construction of wood wagon wheels has evolved considerably over time, with traditional hand methods giving way to more modern techniques. Historically, wheelwrights would handcraft each component using layout sticks, compasses, hand saws, adzes, drawknives, and chisels, along with traditional joinery techniques. The process was labor-intensive, often requiring years of apprenticeship to master.

Today, modern machinery and advanced woodworking techniques have sped up the building process. Craftsmen may design wheels in CAD, cut felloes and spokes on CNC routers, and turn hubs on precision lathes. While some wheelbuilders still adhere strictly to traditional methods for museum-grade restorations or living-history reenactments, many embrace modern technology to produce safe, reliable reproduction wagon wheels more efficiently. Regardless of the approach, the artistry and craftsmanship involved in building wooden wagon wheels remain a testament to the rich heritage of this iconic mode of transportation.

Step-by-Step Instructions: How to Build a Wooden Wagon Wheel

Building a wooden wagon wheel is a complex undertaking that requires careful planning and attention to detail. While this step-by-step guide cannot cover every aspect of the process, it provides a general overview of the construction steps involved. This guide is for educational purposes and should not replace the expertise of a skilled wheelwright:

• Design and gather materials: Begin by designing your wagon wheel and gathering the necessary materials. This includes selecting appropriate hardwoods, acquiring the necessary tools, and determining the wheel's dimensions (diameter, hub width, spoke count, and tire width). Designing your wheel using CAD software is helpful, as it can drive CNC or robot cutters and ensure precise geometry.
• Prepare the hub and spokes: Shape the hub and spokes to the desired dimensions by hand or machine. The finished hub will have a central axle bore and a series of equally spaced mortises or drilled holes for the spokes, which extend radially from the hub at a set angle.
• Assemble the hub and spokes: Attach the spokes to the hub, ensuring they are securely fastened. This can be done with tapered mortise-and-tenon joints, wedges, or metal fasteners, depending on historical accuracy and load requirements. Check for even spacing and consistent spoke length.
• Fit and assemble the felloes and rim: Cut and shape the curved felloe segments, then fit them onto the outer ends of the spokes. Ensure the assembled rim forms a true circle. A dedicated wheel table jig or layout ring is essential for keeping the assembly round and square.
• Install the iron tire: In keeping with historical practice, fit an iron tire around the rim to provide additional strength and durability. The tire is heated in a ring and dropped over the wooden wheel, then quickly doused with water so it shrinks tight as it cools. This step requires specialized tools and skills and may require the help of a local blacksmith or metal shop.
• Finish and fine-tune: Sand and finish the wood surfaces to achieve a smooth, weather-resistant surface. Fine-tune the wheel's balance and alignment to ensure proper rolling on the axle. Apply a protective finish—such as oil, varnish, or paint—to guard the wood against sun, moisture, and abrasion.

While this guide provides a basic overview, building a wooden wagon wheel is a detailed and demanding process. It requires a deep understanding of woodworking techniques, craftsmanship, geometry, and specialized tools. We recommend seeking guidance from experienced wheelwrights, historical wagon builders, or professional woodworking instructors before you proceed with a working wheel intended for loads or riding.

Preservation Techniques for Wood Wagon Wheels

Historic wagon wheels are susceptible to weathering and decay, especially when exposed to the elements for extended periods of time. To preserve original wheels and quality reproductions, proper care and maintenance are essential. Here are some preservation techniques that help extend their life:

• Cleaning: Regularly clean the wheels using a soft brush and mild soap. Remove dirt, dust, bird droppings, and road grime that can trap moisture and accelerate rot.
• Inspection: Periodically inspect the wheels for signs of damage, such as cracks, rot, loose spokes, or insect infestation. Address any issues immediately to prevent further deterioration or sudden failure under load.
• Protective coatings: Apply a protective coating—such as exterior oil, varnish, or clear sealant—to the wood surfaces. This helps prevent moisture absorption and minimizes the risk of decay and checking. Pay extra attention to end grain at spoke tips, felloe joints, and hub faces.
• Storage: When not in use or on display, store wagon wheels in a dry, well-ventilated environment. Avoid areas with extreme temperature swings, standing water, or high humidity. If displayed outdoors, consider elevating the wheels off the ground and providing a roof or partial shelter.

By implementing these preservation techniques, you can extend the lifespan of wood wagon wheels by many years—and in some cases, decades.

Wheel Repair and Long-Term Care

Despite proper preservation efforts, wood wagon wheels will eventually require repair and maintenance. Here are some common issues that can arise and how to address them:

• Cracked spokes or felloes: If a spoke or felloe becomes cracked, it should be repaired or replaced promptly. Use appropriate woodworking techniques and matching species to mend or replace damaged parts, or consult a skilled professional or wheelwright for structural repairs.
• Loose or worn-out iron tires: Iron tires can become loose or worn due to prolonged use, shrinkage of the wood, or corrosion. Tighten or replace tires as needed to ensure the wheel's stability and functionality. Loose tires can sometimes be re-shrunk; severely worn ones may need to be replaced.
• Hub and axle wear: Over time, the hub bore and axle can wear, causing wobble. Bronze or hardwood bushings, careful re-boring, or new hubs may be required for working wagons. Always keep the running surfaces smooth and well-fitted.
• Lubrication: Apply a suitable grease or heavy oil to the axle and hub bearing surfaces to reduce friction and ensure smooth rotation. Regularly check and maintain lubrication points to prevent excessive wear and overheating.

Addressing repairs and maintenance needs promptly, combined with regular inspections, will significantly extend the working life of functional wagon wheels and preserve display wheels for future generations.

Symbolism and Cultural Significance of Wood Wagon Wheels

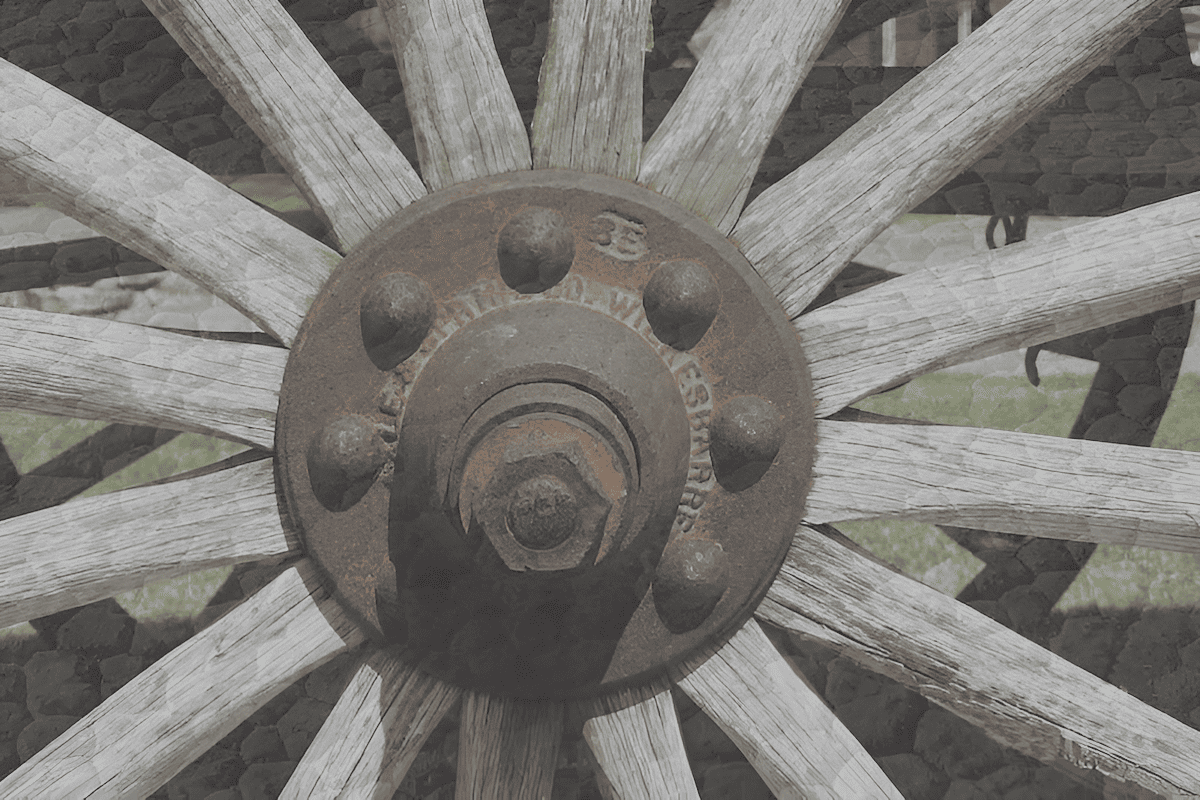

Wood wagon wheels have become powerful symbols of the pioneering spirit that drove expansion into the American West. These wheels, which once turned along the dusty and rocky paths of the Oregon Trail and other migration routes, represent the relentless pursuit of new horizons and the promise of a new life for early settlers. They carried not only the physical weight of belongings and supplies but also the hopes, dreams, and aspirations of families seeking opportunity and freedom.

In cultural narratives, the wooden wagon wheel represents the ingenuity and skill of the wheelwrights who created these essential tools and the adaptability of the settlers who used them. The wheel’s presence in historical sites, museums, and roadside displays along the ribbons of asphalt that now cross the American West serves as a reminder of a bygone era. Historical reenactments along the Oregon Trail and at frontier forts offer immersive experiences for those interested in pioneer life, wagon trains, and the realities of westward expansion.

Creative Uses for Old Wood Wagon Wheels

Old wood wagon wheels, with their rustic charm and historical significance, have inspired a wide range of creative repurposing ideas. One popular use is in furniture, where wheels are transformed into stunning, one-of-a-kind coffee tables or side tables. By adding a glass top to a horizontally placed wagon wheel, you create a functional, conversation-starting piece that anchors a lodge, cabin, or ranch-style living room.

Wagon wheels are also repurposed into striking chandeliers for log homes and barn venues, where a wheel is suspended from the ceiling with lights placed around the rim. This adds a warm, rustic ambiance to great rooms, event barns, and restaurants. Outdoor living spaces also benefit: wheels can be used as the base for benches, fire-pit surrounds, or as focal points in pergolas and outdoor kitchens.

In garden and landscape design, wood wagon wheels are used as eye-catching trellises for climbing plants, creating a beautiful, living piece of garden art. They can be half-buried in a flower bed to create “spoke wedges” of different flowers, herbs, or groundcovers in each section. For whimsical garden designs, painting old wagon wheels in bright colors and using them as wall art, gate accents, or freestanding sculptures adds personality and charm to outdoor spaces.

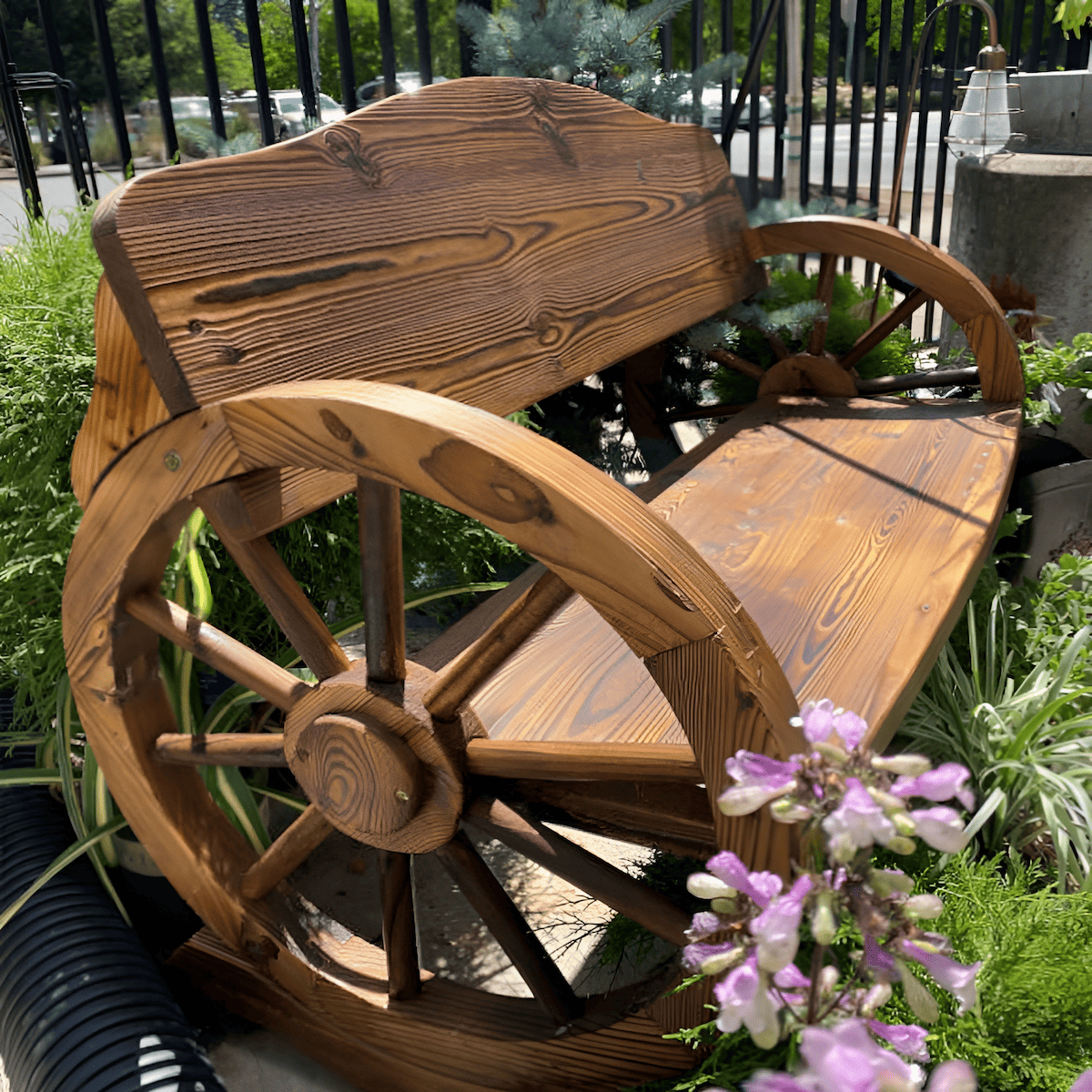

Woodworking enthusiasts have also incorporated wagon wheels into outdoor benches, porch swings, and picnic tables, bringing a strong sense of frontier history to modern homesteads, ranches, and country properties. Whether restored for display, kept functional on a working wagon, or repurposed into décor, these wheels continue to roll their story forward.
