Metal Truss Gussets: Strength and Durability

Metal truss gussets, made of galvanized steel, stainless steel, or aluminum, offer exceptional strength and durability. They are often used in large-scale commercial or industrial projects where heavier loads, longer spans, or demanding environmental conditions are involved. Metal gusset plates can resist very high levels of tension and compression, making them ideal for heavily loaded or long-span structures.

Metal gussets are typically fabricated through processes like laser cutting, stamping, pressing, or welding, ensuring precise hole placement and fit. Many are pre-engineered connectors tested for use with specific truss configurations and lumber grades. This allows designers and builders to rely on published load tables rather than performing custom calculations for every connection.

Common uses for steel truss gusset plates include:

• Pre-engineered metal buildings and long-span warehouse roofs.
• Bridges and pedestrian walkways.
• Sports arenas, auditoriums, and aircraft hangars.
• Hybrid wood–steel systems where metal plates connect timber chords.

For residential and light commercial construction, pressed metal truss plates (also called “toothed plates” or “connector plates”) are standard in factory-built roof trusses, providing tremendous holding power with minimal material.

Bridge Truss Gussets: Load Distribution and Stability

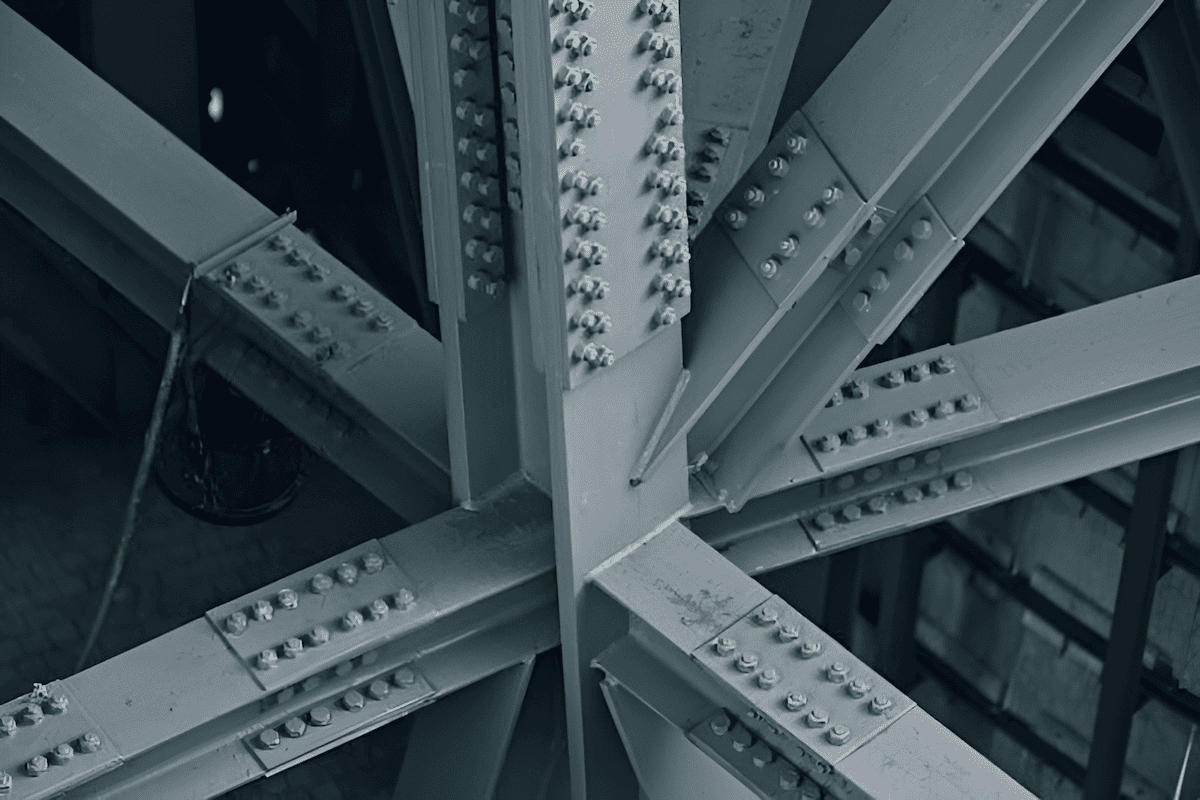

Bridge truss gussets play a critical role in ensuring load distribution and stability in bridge structures. Bridges are subjected to constant vehicle traffic, wind, thermal expansion, and, in some cases, vibration from trains or heavy trucks. The gusset plates in bridge trusses are welded, bolted, or riveted to steel members so they act together as a continuous, load-sharing framework.

The design, size, and placement of bridge gusset plates are carefully calculated so they:

• Handle both static loads (bridge self-weight) and dynamic loads (moving traffic, wind, seismic forces).
• Prevent localized overstress at panel points where many members intersect.
• Provide redundancy so that if one element is damaged, the structure can still safely carry load.

In older bridges, regular inspection of gusset plates for rust, distortion, cracked welds, or loose rivets is a critical part of bridge maintenance and structural safety. When deterioration is found, engineers often design retrofit details that add new plates, bolts, or stiffeners to restore capacity.

Connection Points and Load Transfer in Truss Structures

Truss structures rely on their connection points—called panel points—to transfer loads from one member to another. Gussets are installed at these panel points to create a rigid or semi-rigid joint that controls how the truss deforms under load. A well-designed gusset spreads forces into multiple members instead of concentrating them at a single bolt or weld.

In a typical roof truss, compression forces travel through the top chords while tension forces act along the bottom chords, with web members (diagonals and verticals) taking a combination of tension and compression. The gusset plates at each joint:

• Transfer compression from compressed members into adjacent webs and chords.
• Anchor tension members with bolts, nails, screws, or plate teeth.
• Help maintain the intended angles, preventing the truss from “racking” out of shape.

Whether they are plywood gussets in a small shed or heavy steel plates in a bridge, the core function is the same: reliable load transfer between truss members so the structure behaves as originally engineered.

How Gussets Are Incorporated into Installed Truss Structures

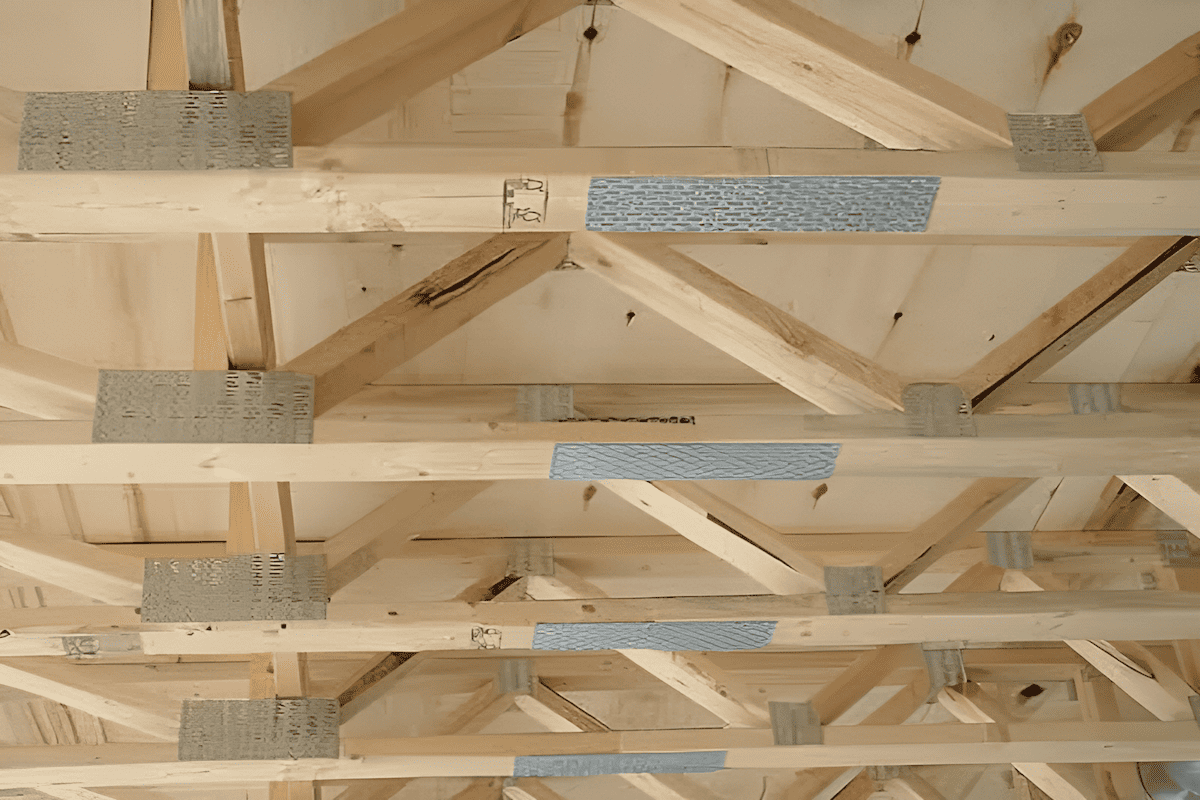

In modern wood house construction, most roof and floor trusses are manufactured in a plant using galvanized steel connector plates. The process involves laying out truss members on a rigid jig or truss table so that every joint is accurately located. Metal plates with integral barbs or teeth are placed over each joint on both sides of the members. A hydraulic press then applies uniform pressure, embedding the teeth fully into the lumber to create a high-capacity, slip-resistant connection.

Once pressed, these metal plate-connected wood trusses are transported to the jobsite and installed as part of the building frame. This approach has:

• Standardized truss quality and consistency.
• Greatly reduced on-site cutting and fitting labor.
• Allowed longer spans and more open floor plans in residential and light commercial construction.

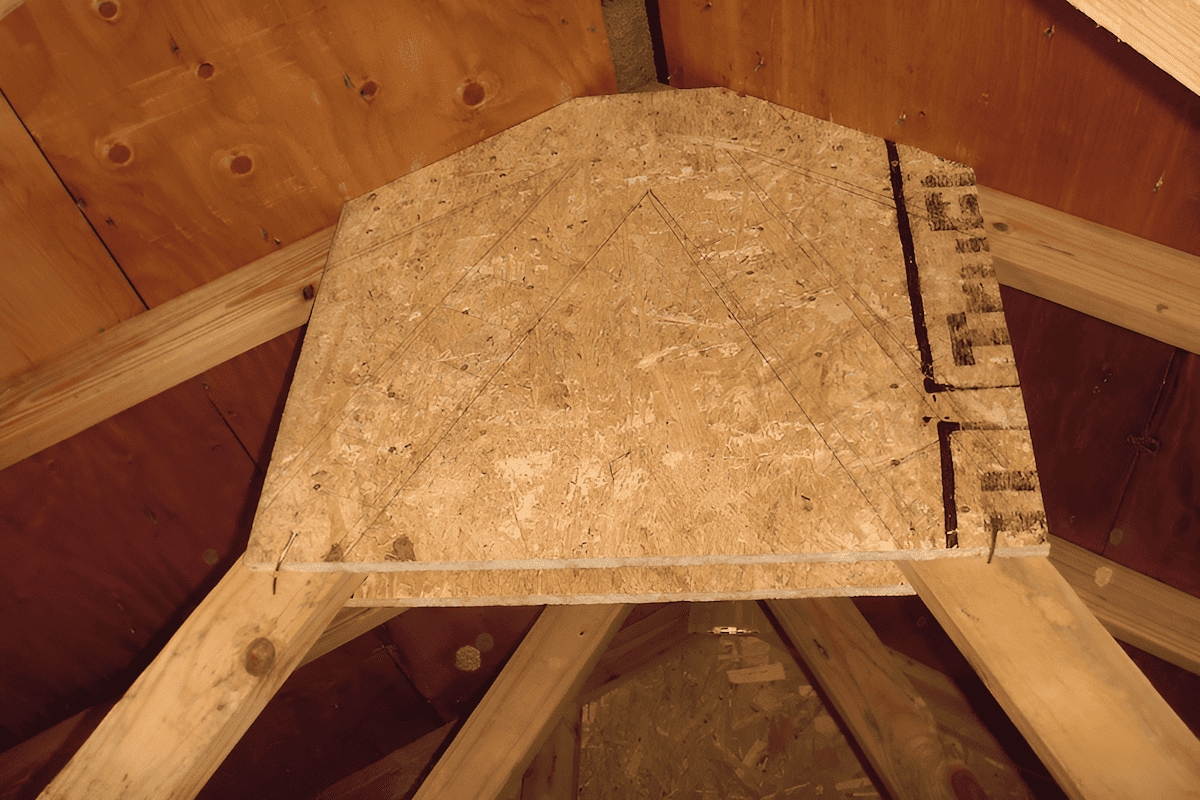

For small projects or repairs, builders still use wood gusset plates assembled on site. These gussets are cut from plywood or OSB and attached with nails or structural screws in a defined pattern, creating a sturdy, code-compliant truss when properly designed. Adding a thin layer of construction adhesive, applied following best practices for gluing wood, can further stiffen the joint and reduce long-term creep.

In hand-built wood trusses, nails or screws are used in a precise geometric pattern to join opposing wood gussets to truss members, enhancing structural integrity. The nail pattern—often a grid or staggered diagonal layout—is chosen to provide even stress distribution and to avoid splitting the lumber. Flat wooden plates are placed on each side of the joint and fastened with nails of appropriate length so they fully penetrate the gusset and embed solidly into the chord or web members. For critical joints, builders may also apply a bead of adhesive following recommended wood gluing techniques to help the gusset and lumber act as a single composite unit.

This method ensures the joint acts as a single unit and prevents weak points by spreading the load across a wide area of wood fibers. When designed correctly, it is a fundamental technique in building strong and reliable wooden roof and floor trusses.

Repair Techniques for Damaged Truss Gussets

Over time, gusset plates can be damaged by overloading, corrosion, moisture, or improper modification. Any truss repair should be approached carefully, especially in engineered roof systems where the truss design is based on precise calculations. When in doubt, consult the truss manufacturer or a licensed structural engineer. That said, some common repair strategies include:

Reinforcing Wood Gusset Connections

• Sistering new gussets – Add new plywood gussets or OSB gussets on one or both sides of the joint, extending beyond the damaged area and fastening with an approved nail or screw pattern.
• Upgrading fasteners – Replace loose or corroded nails with structural screws or ring-shank nails, following spacing limits from building codes or manufacturer guidance.
• Bonded repairs – For small splits or checks, use high-quality wood adhesive applied according to best practices for gluing wood, then clamp and allow full cure before reloading the joint.
• Sealing and protecting – In damp locations, apply a suitable wood preservative or sealer to exposed gusset edges and maintain proper roof ventilation to minimize moisture.

Reinforcing Metal Gusset and Connector Plates

• Supplemental plating – Add new steel plates bolted over or beside the damaged gusset to restore capacity, using bolt sizes and patterns recommended by an engineer.
• Corrosion control – Clean light surface rust, apply a compatible primer, and maintain drainage so water doesn’t collect at gusset locations.
• Do not grind off connector teeth – Removing embedded metal plate teeth or cutting truss members can drastically reduce strength and must only be done under engineered repair details.

In all cases, never cut through truss chords or webs, notch members, or remove gussets without a design professional’s approval. Trusses are engineered as systems, and unapproved field changes can severely weaken the structure.

Common Challenges and Considerations When Using Gussets

While truss gussets provide huge benefits in structural reinforcement, they also come with practical challenges. One is ensuring proper alignment and tight fit of gussets during installation. Any misalignment, gaps, or uneven bearing can reduce strength and cause uneven load transfer. This is why truss tables and assembly jigs are used in manufacturing plants, holding each beam, bar, or chord in the correct position before gusset installation.

Another concern is the potential for corrosion or degradation, especially in outdoor or high-moisture environments like coastal areas or unheated agricultural buildings. Good practice includes:

• Choosing galvanized or stainless steel plates for exposed or damp conditions.
• Using pressure-treated plywood or rated exterior panels for wood gussets.
• Providing adequate roof overhangs, gutters, and ventilation to keep joints dry.

Proper connection details and load transfer are crucial for the effective functioning of truss systems, and gussets are integral to this process. They can be incorporated as factory-pressed metal connector plates or site-built wood gussets, depending on the structure’s size, span, and load requirements. When correctly designed, installed, and maintained—with thoughtful use of plywood, appropriate fasteners, and sound wood bonding techniques—wood and metal truss gussets are a reliable solution for safe, efficient load-bearing structures.
