FENCING • METAL POSTS • DURABILITY
Wondering why metal fence posts are used instead of wood? Metal fence posts are strong, durable, and low-maintenance supports used in fencing systems. Unlike wood posts that can rot, warp, or attract insects, metal posts maintain their structural integrity for decades with minimal upkeep.
🔩 Quick answer: Metal fence posts last longer than wood because they resist rot, insects, moisture, and warping, making them ideal for long-term fencing projects.
Common materials include galvanized steel, hot-dip galvanized steel, powder-coated steel, aluminum, stainless steel, and wrought iron, each offering a different balance of cost, appearance, and corrosion resistance.
Metal posts are used in a wide range of fencing systems, including garden fences, livestock fencing, deer fencing, security fencing, and commercial perimeters. Popular post types include round posts, T-posts (studded), U-channel posts, angle posts, and star pickets.
A properly installed galvanized steel fence post can last several decades because the zinc coating protects the steel from corrosion, even in harsh outdoor conditions.
Most steel fence posts are protected with galvanization or specialty coatings to prevent rust. Galvanized posts are coated with zinc, which acts as a sacrificial barrier— moisture and oxygen react with the zinc first, protecting the steel underneath.
Hot-dip galvanized fence posts offer the highest level of protection. These posts are dipped into molten zinc, creating a thicker, more durable coating than electro-galvanized options, making them ideal for coastal, agricultural, or high-moisture environments.
Many metal posts also feature a powder-coated finish in colors like green, black, or brown. This adds visual appeal, helps posts blend into the landscape, and provides additional protection against UV exposure, fertilizers, animal waste, and road salts.
For extreme environments, stainless steel posts or heavy-wall galvanized steel posts are often the best choice. Although they cost more upfront, they significantly reduce long-term maintenance and replacement costs.
Aluminum fence posts are another popular option, especially for residential, pool, and decorative fencing. Aluminum does not rust, is lightweight, and is available in a wide range of finishes. While not as strong as steel, properly sized aluminum posts provide excellent durability for most residential applications.
Key insight: The right coating—especially hot-dip galvanizing—is the single biggest factor determining how long a metal fence post will last.
One of the biggest advantages of metal fence posts is their long-term durability. Properly galvanized or coated steel posts are highly resistant to rot, termites, carpenter ants, and fungal decay—common issues that can quickly weaken wood posts in damp or poorly drained soils. Unlike wood, metal does not swell, crack, split, or warp with seasonal moisture changes, helping fences stay tight, straight, and structurally sound year after year.
Metal posts also deliver more consistent performance because they are manufactured to precise diameters and wall thicknesses. This allows for more accurate fence design, including predictable post spacing, wire tension, and corner bracing. In agricultural, ranch, and large property settings, this reliability translates into fewer repairs, reduced maintenance, and less time spent re-tightening wire or correcting leaning sections—especially in areas where livestock pressure or environmental stress is high.
Metal fence posts are available in a wide range of diameters, gauges, and lengths to suit different fence types and load requirements. Round steel posts typically range from about 1⅜ inches to 4 inches in outside diameter, with wall thicknesses from lighter 16-gauge options up to heavy-duty schedule-40 pipe. T-posts and studded tee posts are usually rated by weight per foot (such as 1.25 or 1.33 pounds per foot), with heavier posts offering greater resistance to bending, especially in rocky soils or high-tension fencing systems.
Standard post lengths for garden and field fencing typically range from 6 to 8 feet, while taller 10- to 12-foot posts are used for deer fencing, security perimeters, and specialized applications. As a general rule, at least one-third of the total post length should be set below ground to provide adequate stability. For example, a 6-foot above-ground fence is commonly supported by 8-foot posts installed approximately 2 feet deep.
To simplify planning and ensure accurate material estimates, tools like the Fence Post Calculator are extremely useful. By entering your fence length, spacing, and layout details, you can quickly determine how many posts you need and optimize your design before installation begins.
Round metal fence posts are among the most widely used options for chain-link fences, welded wire panels, and some privacy fence systems. Their smooth tubular shape makes them easy to set in concrete, drive with specialized equipment, and finish with post caps that help keep water out while giving the fence a cleaner appearance. Heavier round posts are often selected for corner posts, gate posts, and terminal posts because these locations must handle the greatest wire tension, hinge stress, and impact loads.
Square and rectangular steel posts offer a more architectural look and are often chosen for modern privacy fences, ornamental metal fences, and composite panel systems. Their flat sides make them especially useful where brackets, fasteners, and rails need secure attachment points. They also provide good resistance to twisting, which can be an advantage in taller fence installations or exposed areas with stronger winds.

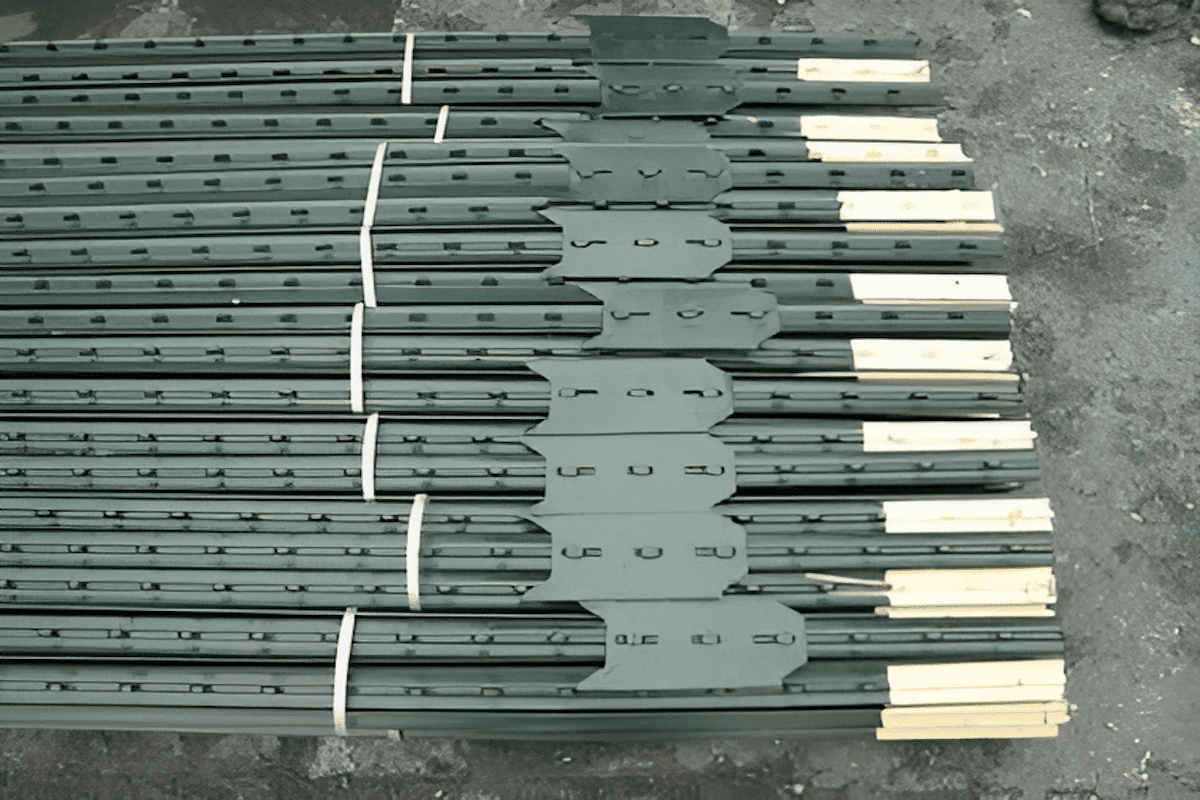

T-posts, also called studded tee posts, are the workhorses of agricultural and livestock fencing. Their T-shaped cross-section and raised studs help hold woven wire, barbed wire, or field fence in place once clips are attached. T-posts are usually driven directly into the soil with a manual or powered post driver, which makes installation fast and cost-effective since concrete is typically unnecessary. The built-in anchor plate near the base helps reduce pull-out when livestock lean against the fence or when tension is applied across long runs.
U-channel fence posts are lighter-duty metal posts with an open channel that makes it easy to attach garden fencing, snow fence, light wire barriers, and temporary construction fencing. They are commonly used for smaller enclosures, seasonal barriers, and budget-friendly fence layouts. Star pickets and Y-posts serve a similar purpose to T-posts but use a star-shaped or Y-shaped cross-section for added rigidity. These are especially common in Australia, New Zealand, and parts of Europe, where they are widely used in agricultural, roadside, and perimeter fencing.
The best metal post profile depends on your fence style, site conditions, and the loads the fence will need to handle. For chain-link fences, round or square steel posts are standard, with heavier terminal posts used at corners, ends, and gates and lighter line posts spaced between them. For woven wire livestock fences, T-posts usually support the line sections, while heavier round or pipe posts are used at corners, brace assemblies, and gateways where extra strength is required.
Garden, landscape, and decorative fences may use a mix of U-channel posts, round steel posts, or ornamental metal posts, depending on whether the priority is affordability, appearance, or long-term durability. In higher-security applications, heavier schedule-40 steel pipe posts paired with welded mesh or anti-climb panels offer the stiffness and impact resistance needed to handle cutting forces, bending pressure, and more demanding site conditions.
Even the best galvanized steel fence posts can fail prematurely if they are not installed correctly. In most climates, posts should be set below the local frost line—or at least deep enough to reduce the risk of frost heave pushing them upward over time. A common rule of thumb for residential fencing is to bury about one-third of the total post length, but taller fences, high-wind locations, and high-tension fence systems often require deeper holes and larger footings for long-term stability.
For hand-dug installations, post hole diggers and clam-shell diggers remain standard tools, while power augers can save considerable time on long fence runs. In rocky or compacted soils, driving T-posts or star pickets may be easier than boring holes for round posts. No matter which method you use, keep posts plumb with a level and align them carefully with a taut string line so the finished fence looks straight, clean, and professionally installed.
Post spacing depends on the fence material, wind exposure, terrain, and whether livestock or wildlife will push, lean, or climb against the fence. Light garden fences may allow 8 to 10 foot spacing, while high-tensile wire, livestock fencing, and wildlife barriers often perform better with closer 6 to 8 foot spacing for improved load distribution. The Fence Post Calculator can help you compare spacing options, fence height requirements, and material quantities before you finalize your layout.
Setting posts in concrete footings creates a rigid, permanent base that works well for privacy fences, chain-link systems, ornamental metal fencing, and gate assemblies. Concrete helps resist lateral movement, improves alignment, and adds strength where fence sections experience repeated stress. For best results, the concrete should finish slightly above grade and slope away from the post so water drains outward instead of collecting around the base.
Driven posts, including T-posts and star pickets, are usually faster and more economical for large properties, agricultural fencing, temporary enclosures, rotational grazing paddocks, and snow fencing. They are easier to install across long runs and can be repositioned more easily if your layout changes. However, driven posts alone may not provide enough strength at corners, ends, or gate openings, which is why many fence systems combine driven line posts with heavier concrete-set steel posts in critical load-bearing locations.
Homeowners and land managers often compare metal fence posts vs wood posts when planning a new fence. Wood can be less expensive on a per-post basis and is easy to cut, drill and customize on site. In some traditional or rustic settings, treated wood posts also match the desired aesthetic better than metal. However, wood must be properly pressure-treated for ground contact, and even then, posts in wet or highly acidic soils may only last a fraction as long as comparable galvanized steel posts.
Metal posts usually have a higher upfront cost but offer lower lifetime cost because they last longer and require less maintenance. They also handle the forces of high-tensile wire, gate loads and livestock impacts better than small-diameter wood posts. Many modern fence designs combine the strengths of both: durable metal end and corner posts with treated wood or composite rails and infill that can be easily replaced or upgraded over time using secure connectors like fence post brackets for stronger, longer-lasting assemblies.
Although metal fence posts are low-maintenance, a few simple practices can extend their life even further. Avoid burying posts in highly corrosive backfill such as cinders or manure, and do not allow water to pool around the post base. Installing post caps on open-top round and square posts keeps rain, ice and debris out of hollow sections, reducing internal rust.
Inspect posts periodically for chips or scratches in the coating. Touch up exposed areas with a compatible cold-galvanizing paint or rust-inhibiting primer and topcoat. In coastal zones or areas with aggressive de-icing salts, rinsing posts occasionally and choosing heavier galvanizing or stainless components for critical locations can prevent premature corrosion.
Metal fence posts offer a durable, low-maintenance foundation for almost any fence system. With a wide variety of materials, profiles and coatings—round posts, studded T-posts, U-channel posts and star pickets—you can match the post to your site conditions, fence style and budget. Careful design, proper post spacing, quality connectors, and correct installation will ensure your fence stays straight, secure and attractive for years to come.
Both metal and wood fence posts have their place, but metal fence posts usually win on longevity and overall life-cycle cost. Galvanized steel, powder-coated steel and aluminum posts are highly resistant to rot, insect damage and warping, which are the main reasons wood posts fail. Metal posts also hold up better to high-tensile wire, livestock pressure and wind loads when sized correctly.
Wood posts can be less expensive up front and may fit rustic or traditional designs better. A common compromise is to use heavy metal corner and gate posts for strength, then treated wood or lighter metal posts along the fence line. Before you start, use the Fence Post Calculator to compare layouts, spacing and material counts for both options.
Most fences use one or more of the following metal post types:
Each profile has strengths in different situations. For example, round and square pipe posts are ideal at corners and gates, while T-posts and star pickets keep long runs of wire fence upright at lower cost.
“Galvanized” means the steel post has been coated with zinc, either by hot-dip or electroplating. Zinc acts as a sacrificial layer: it corrodes first, protecting the underlying steel. Hot-dip galvanized fence posts have a thicker zinc coating and are preferred for coastal sites, high-rainfall climates and agricultural applications where manure, fertilizer and irrigation water can accelerate corrosion.
If you’re building a long-term farm or perimeter fence, investing in heavier hot-dip galvanized posts often pays back over time by avoiding early post replacement and fence failure.
A simple rule of thumb is to bury roughly one-third of the post’s total length in the ground. For a 6-foot (1.8 m) tall fence, that usually means using 8-foot posts set around 24 inches deep. Taller fences, high-tension wire or very soft soil may require deeper holes or larger diameter posts to resist bending.
In cold climates, posts should extend below the local frost line to reduce frost heave. When digging, tools like post hole diggers, manual augers or power augers make it easier to reach the correct depth and keep holes uniform along the fence line.
No. Whether you need concrete depends on your fence type, soil and load:
Many fences use a hybrid approach: concrete-set posts at corners and gates, with driven T-posts or lighter line posts in between to save time and money.
Post spacing depends on fence height, material and expected loads. Light garden or boundary fences might use spacing of 8–10 feet between posts. Woven wire livestock fences, wildlife fences and high-tensile systems often perform better with 6–8 foot spacing, especially in windy areas or where animals put pressure on the fence.
Heavier chain-link or privacy fences with solid infill can act like a sail in strong winds, so they often require closer spacing and heavier posts. Use the Fence Post Calculator to test spacing scenarios and get a more accurate post count before purchasing materials.
Steel post strength is influenced by diameter, wall thickness and steel grade. Light-duty residential posts may be 16–18 gauge with smaller diameters, while heavy-duty agricultural or security fences use thicker-wall pipe or schedule-40 posts. For T-posts, strength is described in pounds per foot (for example, 1.25 or 1.33 lb/ft) – heavier posts resist bending and are better suited to rocky soils and high-tension wire.
For long runs, gates or long-term farm perimeter fences, it’s usually smart to err on the stronger side for corners and end posts. Under-sized posts can bend under tension or wind load, creating sagging wire and misaligned gates that are much harder to fix later.
Service life depends on material, coating and exposure, but galvanized steel fence posts can easily last 20–40+ years in typical conditions, and even longer in dry, well-drained soils. Hot-dip galvanized, powder-coated and stainless steel posts offer the longest life, while thin, uncoated steel exposed to constant moisture or fertilizers will rust more quickly.
Aluminum posts do not rust and can last for decades in residential settings. You can extend the life of any metal post by using post caps, sloping concrete away from the post base and avoiding constant contact with standing water, manure or corrosive backfill materials.
Yes. Many modern fence systems use metal posts with wood or composite rails and infill. Brackets and adapter kits are available for round, square and rectangular posts that let you bolt or screw wood rails directly to the metal. This hybrid approach gives you the warm look of wood with the long-term strength of steel at corners and gates.
Be sure to use corrosion-resistant fasteners (hot-dip galvanized or stainless) when attaching wood to metal, especially in damp or coastal environments. Pre-drilling holes through metal posts and sealing cut ends of treated lumber will help prevent premature corrosion and decay at connection points.
Start by choosing posts with an appropriate coating for your climate: hot-dip galvanized, powder-coated or stainless steel for the most demanding conditions. Once installed, use post caps to keep water and debris out of hollow posts, and avoid burying posts in highly corrosive materials such as cinders or manure.
Inspect the fence periodically for scratched or chipped areas where bare steel is exposed. Touch up those spots with cold-galvanizing compound or rust-inhibiting paint. In coastal areas, occasional rinsing to remove salt spray and using heavier coatings or stainless hardware in critical locations can dramatically extend post life.
Successful fence projects start on paper. Map out property lines, gates, corners and any changes in grade, then decide on fence height, fabric and post type. Use the Fence Post Calculator to estimate how many posts you’ll need at various spacing intervals and where heavier corner and gate posts should go.
Once you have a materials list, compare the cost and service life of metal vs wood posts and consider a hybrid design that uses the strengths of both. Planning ahead saves time, prevents wasted material and helps you build a metal post fence that stays straight, strong and attractive for decades.
