Wood Sawhorses: What They Are and Why You Need Them in Your Workshop

What exactly is a sawhorse? A sawhorse is a simple but incredibly useful portable workbench support used in woodworking, carpentry, and construction projects. A traditional wood sawhorse consists of a pair of sturdy legs, typically arranged in an “A” shape, joined by a horizontal top beam. That top provides a stable surface for lumber, sheet goods, and workpieces, while the angled legs provide stability and strength.

Think of sawhorses as the foundation of a temporary workbench. Used in pairs, they support everything from DIY projects to professional framing and trim work. Whether you are ripping plywood, crosscutting studs, assembling cabinets, or painting doors, wood sawhorses give you a safe, elevated work surface so you’re not working on the ground, balancing boards on ladders, or straining your back.

What are they used for? Sawhorses shine anywhere you need a temporary but steady support. They are commonly used to:

• Support long boards, beams, or sheet goods during cutting and layout.
• Create a temporary workbench by placing a sheet of plywood over two sawhorses.
• Hold doors, trim, and panels off the ground for sanding, routing, or finishing.
• Support tools, clamps, and jigs on job sites where no permanent bench exists.

By elevating materials off the floor, sawhorses provide a comfortable working height, reduce bending and kneeling, and improve accuracy when measuring and cutting. For anyone who works with hardwoods or softwoods, a good set of sawhorses quickly becomes an essential part of the shop.

Sawhorses can also be used as makeshift assembly tables. Their flat top and wide stance make them ideal for supporting clamps, vises, and other accessories. Some commercial sawhorses even include built-in features like material stops, tool trays, and notches for crosscutting 2×4s. This combination of portability and versatility is why sawhorses are found in nearly every serious workshop and on every construction site.

Different Types of Wood Sawhorses

Wood sawhorses are the most classic—and still the most popular—type of sawhorse. They’re favored for their durability, low cost, and easy built-on-site construction. You can build them from common framing lumber and adapt the design to fit your height, truck bed, or storage space.

While there are many variations, most wood sawhorses fall into three main categories: traditional fixed-height sawhorses, folding sawhorses, and multi-function workbench sawhorses.

Construction-Grade Spruce or Fir: Ideal Wood for a Sawhorse

The wood you choose for your sawhorses has a big impact on strength, stability, and lifespan. Construction grade Douglas fir is a favorite among pros for job-site sawhorses. It’s strong, moderately light, and readily available at any lumberyard.

Spruce is another excellent choice. While slightly less dense than fir, it is still very strong for its weight and often more affordable. Both fir and spruce are categorized as softwoods, but don’t let that term fool you— when properly sized and braced, they can support remarkably heavy loads.

For shop-only sawhorses, some woodworkers prefer clear, knot-free stock or even laminated hardwood tops to resist denting from repeated use. If you work frequently with heavy maple or oak slabs, upgrading the top beam can help your sawhorses last for years.

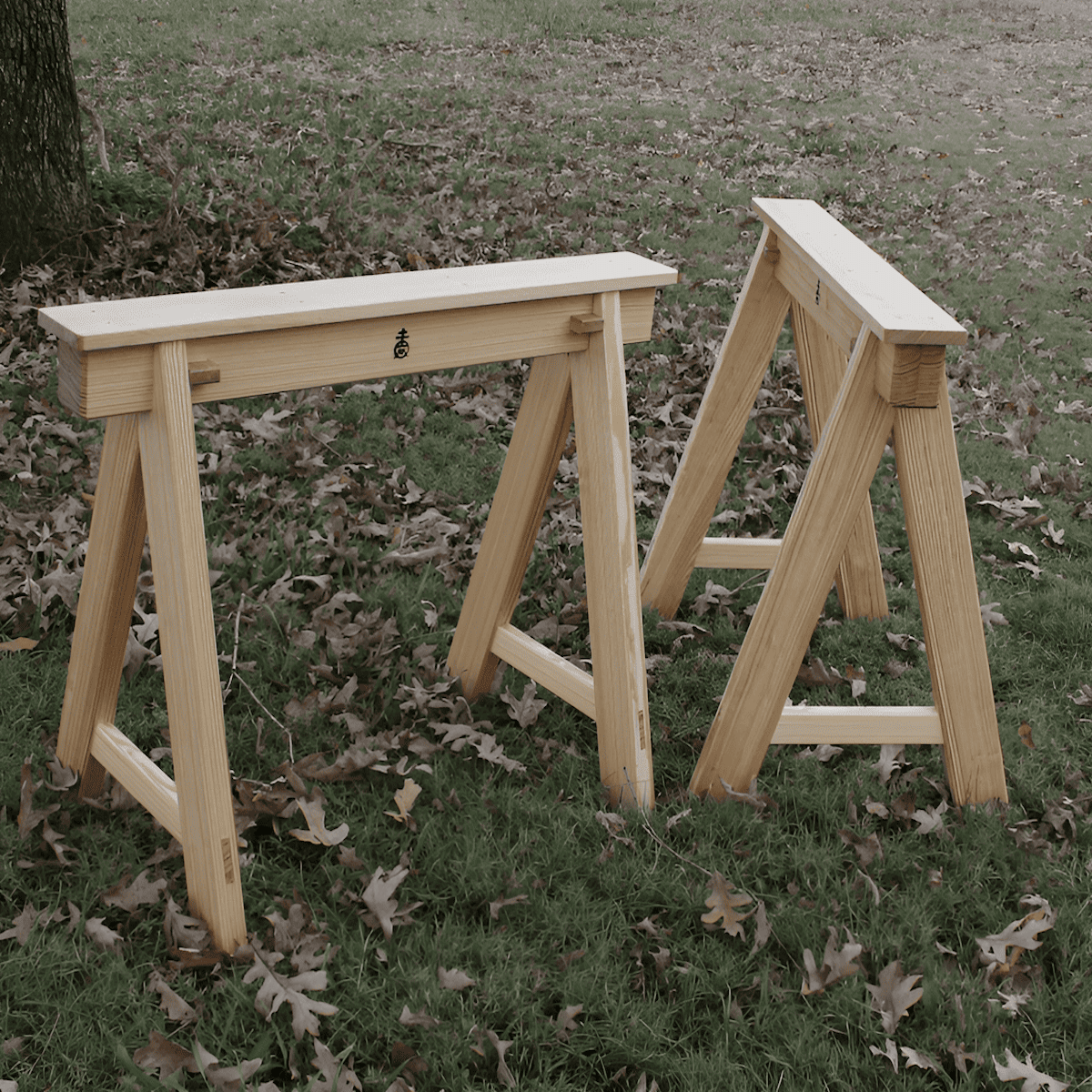

Traditional Wood Sawhorses

Traditional wood sawhorses are simple, rugged, and easy to repair. They usually consist of two angled legs on each side and a 2×4 or 2×6 top. Cross braces between the legs add rigidity and prevent racking.

Advantages of traditional sawhorses include:

• Low material cost—often built from offcuts and scrap framing lumber.
• Custom height: build them to match your table saw or miter saw for infeed/outfeed support.
• Easy to modify with notches, holes, or sacrificial tops for repeat cutting.

If you’re learning basic joinery or following simple woodworking plans, traditional sawhorses are a perfect beginner project.

Folding Wood Sawhorses

Folding wood sawhorses offer the convenience of easy storage and transport, especially in small garages or mobile job sites. Their legs are attached with hinges or pivot hardware so the whole unit collapses flat when not in use.

Many folding designs use high-quality plywood for the sides and braces, making them strong yet light enough to carry in one hand. When combined with a removable plywood sheet, a pair of folding sawhorses can become a full-size, portable workbench that sets up in seconds and stores against a wall when you’re finished.

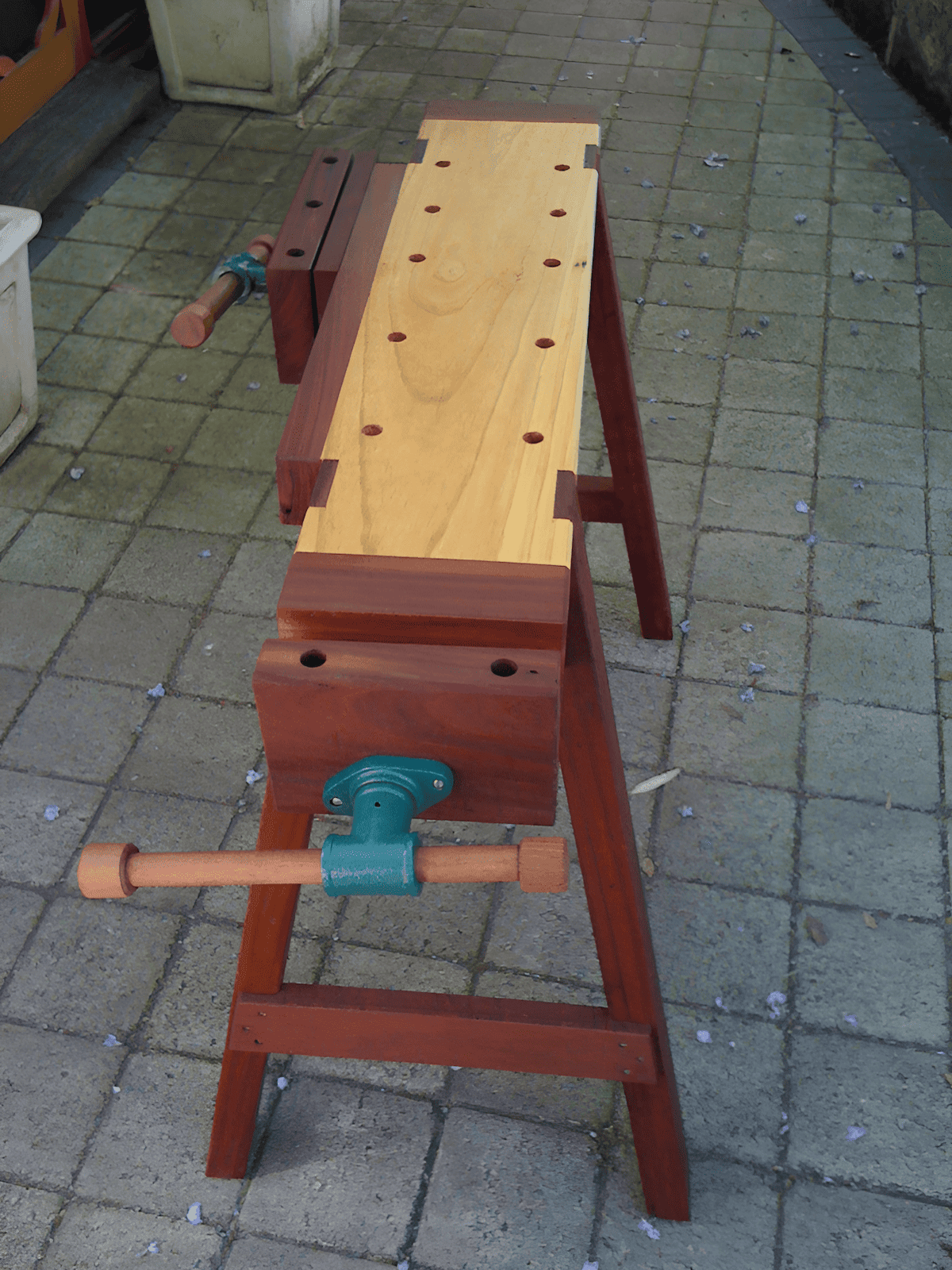

Workbench Sawhorses (Multi-Function Supports)

Workbench sawhorses take the basic idea a step further. These multi-function supports often include:

• Adjustable pegs and dog holes along the top or sides for supporting wide or irregular workpieces.
• Sliders or extension arms to widen the work surface or provide extra support for long boards.
• Integrated clamps or clamp channels that hold materials firmly for cutting, routing, sanding, or assembly.

Combined with a flat top and good joinery, workbench sawhorses become a flexible “third hand” in your shop, especially when building furniture, cabinets, doors, or picture frames.

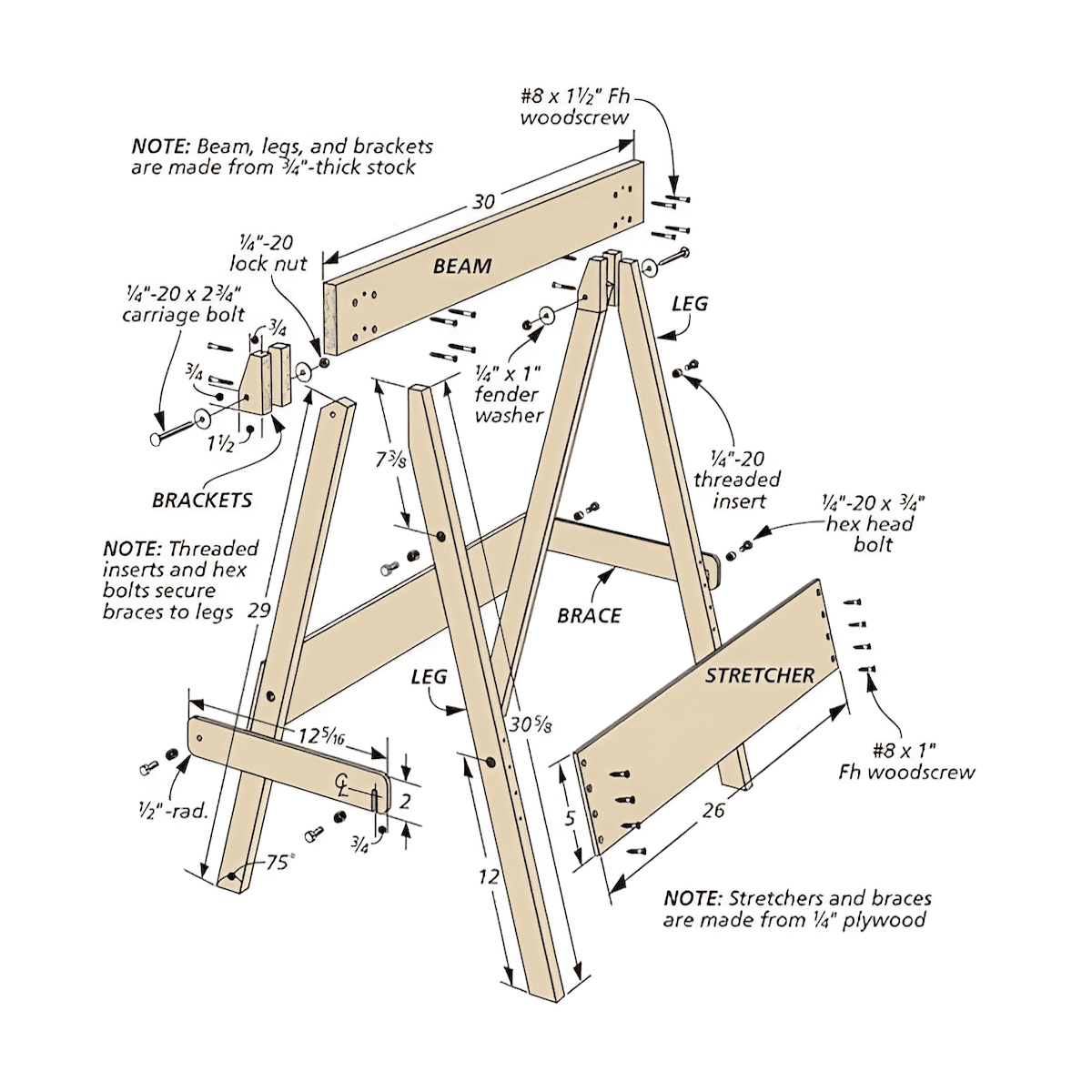

DIY Sawhorse Plans: Building Your Own Sawhorses

Building your own wood sawhorses is a great way to gain confidence with tools, save money, and customize your setup. With basic framing lumber, a saw, and a handful of screws, you can create strong, reliable supports in an afternoon.

Key steps when building DIY sawhorses include:

• Gather materials: Use straight 2×4 or 2×6 stock (fir or spruce), exterior or construction screws, and optional plywood for gussets or shelves.
• Choose a design: Decide whether you want fixed-height, folding, or hybrid sawhorses. Consider load capacity, storage space, and how you’ll transport them.
• Take accurate measurements: Standard sawhorse height is often 30–32 inches, but you can match your existing bench or table saw height for easier infeed/outfeed support.
• Cut and shape the legs: Use a miter saw or combination square to cut identical angles at the top and bottom of each leg so the sawhorse sits flat and doesn’t wobble.
• Reinforce with gussets: Add plywood gussets at the top of each “A” and a lower cross brace to prevent the legs from spreading during use.
• Test and tune: Set the pair on a flat surface and check for rocking. Plane or sand any high spots and tighten loose screws before putting them into regular service.

With a bit of planning, you can also add sacrificial 2×4 caps that can be replaced when they become too chewed up from sawing, preserving the main structure for years of use.

Load Capacity, Joinery, and Smart Design Features

Every sawhorse has a practical load capacity, determined by the lumber size, the span between sawhorses, and the quality of the joinery. For heavy sheet goods, stacks of framing lumber, or thick hardwood slabs, you’ll want heavier-duty construction, close spacing between sawhorses, and good bracing.

Advanced joinery techniques can significantly increase strength:

• Mortise and tenon joints: Ideal for long-lasting shop sawhorses where maximum strength matters more than setup speed.
• Dovetail joints: As used in fine joinery projects, dovetails resist pulling forces and can be used where the legs meet the top in high-end builds.
• Half-lap joints: Simple, strong, and perfect for intersecting braces that need to stay flush and rigid.

Many modern sawhorses—store-bought or shop-built—also include smart design features such as:

• Built-in measuring guides or rulers along the top edge for quick layout cuts.
• Notches sized to cradle 2×4s for repeat crosscuts or temporary guardrails.
• Tool trays or hooks to keep tape measures, pencils, and clamps within easy reach.
• Non-slip strips on the top to keep sheet goods from sliding during cutting.

Why You Need Sawhorses for Your Woodworking Projects

Sawhorses are one of those tools that you may not fully appreciate until you’ve used them. Once you have a solid pair (or two), it’s hard to imagine working without them. They improve safety, accuracy, and comfort for almost every woodworking, carpentry, or home improvement project.

From supporting framing lumber to serving as a base for a temporary finishing station, sawhorses help protect your back, your tools, and your workpieces. Whether you choose to buy commercial sawhorses or follow DIY sawhorse plans and build your own from spruce or fir, they are a basic shop necessity—right alongside your saws, clamps, and measuring tools.

If you’re outfitting a new workshop or upgrading your job-site kit, start with a strong, reliable set of wood sawhorses. They may be simple, but they’re one of the most useful supports you’ll ever build.

Sawhorses

Wood Sawhorse FAQs

What’s the best height for a sawhorse?

Most woodworkers and contractors prefer sawhorses in the 28–32 inch (71–81 cm) range. A height of about 30 inches is a reliable standard for general cutting, assembly, and finishing work. If you are tall or do a lot of detailed bench-height tasks, you may prefer 32–34 inch high sawhorses to reduce back strain. For low sheet-goods cutting with a track saw, shorter horses or a platform on foam insulation can be more comfortable and safer.

How much weight can a sawhorse hold?

Load capacity varies by design, materials, and bracing. Plastic folding sawhorses are often rated between 500–1,000 pounds per pair, while steel-tube sawhorses can be rated for 1,000–2,000 pounds per pair. A well-built pair of timber sawhorses with proper gussets and stretchers can exceed those ratings, especially when you use a solid 2×4 or 2×6 sacrificial top. Always check the manufacturer’s rating and remember that most ratings are given per pair, not per individual horse.

Should I choose folding or fixed sawhorses?

Folding sawhorses are ideal if you work on multiple jobsites or have limited storage. They fold flat, are lightweight, and can be carried in a truck or van with ease. Modern folding designs made from steel or high-impact plastic are surprisingly strong and often include notches for 2×4 top rails.

Fixed wooden sawhorses are heavier and more rigid, making them perfect for permanent shop use. They are easy to repair, inexpensive to build from construction-grade fir or spruce, and can be customized for height, length, and bracing. Many woodshops keep one solid fixed pair for everyday use and an extra folding pair for mobile work.

What is a sacrificial top and why should I use one?

A sacrificial top is a replaceable 2×4 or strip of lumber screwed to the top of your sawhorse. You intentionally cut into it when crosscutting boards or breaking down sheet goods. This protects the main structure of the sawhorse, prevents accidental blade contact with screws or nails, and provides a flat, predictable cutting surface. When the top becomes too chewed up, simply replace it and keep the base of the sawhorse in service for years.

What are good DIY dimensions for a sturdy wooden sawhorse?

A proven “all-around” pattern for DIY sawhorses is:

• Height: about 30 inches for general use.
• Top length: 32–36 inches (longer tops for wide sheet goods).
• Footprint width: 24–26 inches from outside leg to outside leg.
• Leg splay: roughly 12–15° for a stable stance.
• Bracing: a full-length lower stretcher and plywood gussets at the top of each “A”.

Use glued and screwed lap joints or gussets for the leg-to-top connection, then crown the assembly with a replaceable 2×4 sacrificial rail. This layout produces a rigid, shop-grade sawhorse that can handle heavy loads safely.

Any safety tips when using sawhorses?

Always set up sawhorses on a flat, level surface and fully spread the legs or locking braces. Clamp or weigh down sheet goods to prevent shifting, and plan your cuts so the blade never crosses a leg or structural fastener. Wear appropriate personal protective equipment (PPE), including eye and ear protection and a dust mask when needed.

Avoid standing or stepping on sawhorses that are not rated as platforms. For very heavy timbers or stacked materials, consider a center beam between two sawhorses or add diagonal cross-bracing for extra support. Regularly inspect your horses for loose screws, cracked legs, or damaged tops, and repair or retire any that show structural weakness.
